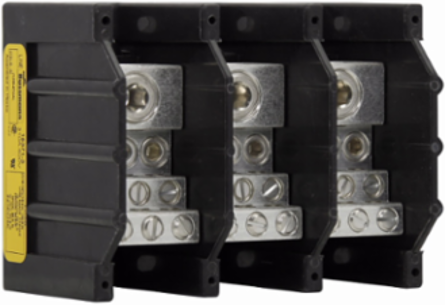

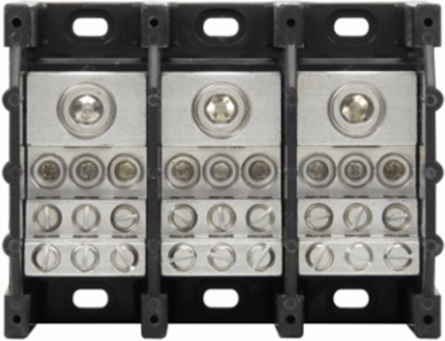

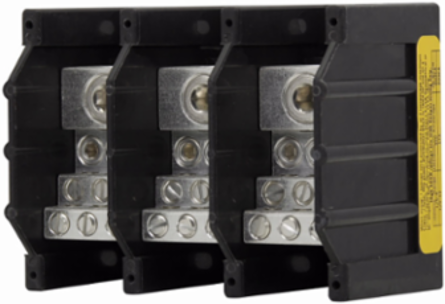

Bussmann 16371-3 Power Distribution Block 600 Vac, 310A, Three-Pole, SCCR: 100 kA, Black
- MPN: 16371-3
- UPC: 051712271394
- PPN: BUS-16371-3
CAD
$216.02
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Power Distribution Block 600 Vac, 310A, Three-Pole, SCCR: 100 kA, Black
Features
- Featuring one primary lug (6 AWG to 350 kcmil) and nine secondary load ports per pole, this 3-pole power distribution block eliminates the need for bulky, unreliable pigtail splices. This highly organized, multi-port design drastically reduces labor time during industrial panel building and ensures clean, easily traceable wire routing for routine facility maintenance.
- Rated for an impressive 310 Amps at up to 600V AC/DC, this heavy-duty terminal block effortlessly manages the massive power demands of industrial motor control centers and commercial electrical distribution. The dual-rated, tin-plated aluminum connectors are fully compatible with both copper and aluminum conductors, giving electricians ultimate flexibility and cost-savings when pulling large-gauge wire.
- Engineered to withstand extreme electrical fault events, this distribution block delivers a robust 100,000 Amp Short Circuit Current Rating (SCCR) when paired with the proper upstream current-limiting fuses. This high fault tolerance prevents catastrophic equipment meltdowns and guarantees your installation seamlessly passes rigorous UL 508A inspections for industrial control panels.
- Constructed with a rugged, heat-resistant thermoplastic housing, this unit prevents dangerous electrical tracking and provides superior dielectric insulation between live poles. This highly durable chassis easily withstands the elevated operating temperatures found inside densely populated switchgear, preventing dangerous arc flash hazards and ensuring decades of reliable service.
Documentation & Downloads
Specifications
Additional
- Amperage
- 310A
- Short Circuit Rating
- 100 kA
- Length/Depth
- 3.95 in
- Height
- 3.18 in
- Material
- Molded Thermoplastic Base, Tin-plated aluminum connector
Voltage600 Vac, 600 Vdc
Number of PolesThree-pole
Width5.21 in
Weight1.78 lb
ColorBlack
