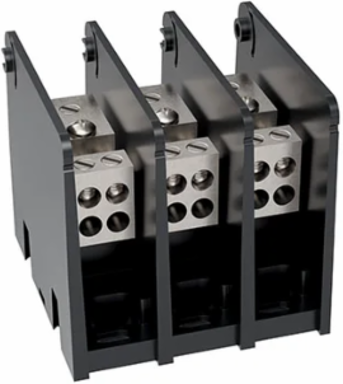

Mersen MPDB63163 Miniature Power Distribution Block, 1000V, 85A, 3-Pole, #4-#14 Wire Range
- MPN: MPDB63163
- UPC: 782001450229
- PPN: FER-MPDB63163
CAD
$60.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Next Generation Power Distribution Block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code®. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series), and large (MPDB68 and MPDB69 series), in both aluminum and copper.
Features
- Specifically engineered to handle up to 1000V AC/DC, this power distribution block is the ideal solution for high-voltage photovoltaic (PV) arrays and modern industrial energy storage. Utilizing a high-voltage rated component ensures your system remains fully compliant with the latest NEC requirements for renewable energy installations, preventing insulation breakdown and hazardous arcing.
- This integrated 3-pole design allows you to manage three-phase power distribution within a single, compact footprint, significantly reducing the rail space required compared to individual blocks. The streamlined layout simplifies wire management for industrial motor controls and HVAC sequencers, allowing for a cleaner, more organized professional installation that is easier to troubleshoot.
- Featuring versatile pressure-plate terminals that accept wire sizes from #4 down to #14 AWG, this block provides maximum flexibility for both heavy-duty primary feeds and smaller secondary branch circuits. The high-conductivity tin-plated aluminum connectors ensure a low-resistance interface, preventing localized overheating and voltage drops that can degrade the performance of sensitive downstream electronics.
- Designed with an IP20-rated "finger-safe" enclosure, this distribution block prevents accidental contact with live energized parts during routine maintenance or inspection. This built-in safety barrier is a critical upgrade for industrial facility managers aiming to reduce arc flash risks and meet stringent OSHA and NFPA 70E workplace safety mandates without the need for additional custom plexiglass shielding.
Documentation & Downloads
Specifications
Additional
- Voltage
- 1000 V AC/DC
- Number of Poles
- 3
- Short Circuit Rating (Class L)
- 100 kA with 100 A Fuse
- Short Circuit Rating (Class J)
- 100 kA with 100 A Fuse
- Short Circuit Rating (Class RK5)
- 100 kA with 30 A Fuse
- Short Circuit Rating (Class G)
- 100 kA with 60 A Fuse
- Width
- 2.91 in
- Height
- 2.81 in
- Number of Openings per Pole (Primary)
- 1
- Hex/Screw Size & Type (Primary)
- 1/4-28 x .38
- Torque Rating (Primary)
- #4-#6 35; #8 25; #10-#14 20
- Hole Diameter (Primary)
- 0.25 in
- Connector Type (Primary)
- Box
- Installation Mounting
- Direct Screw Mount
- Connector Material
- Tin-plated Aluminum
- Frequency
- 50/60 Hz
- CSA Certified
- CSA Certified Class 6228 01
Ampere Rating (Copper)85 A
Wire Range (Primary)#4-#14
Short Circuit Rating (Class RK1)100 kA with 60 A Fuse
Short Circuit Rating (Class CC)100 kA with 30 A Fuse
Short Circuit Rating (Class T)100 kA with 100 A Fuse
Short Circuit Rating (Standalone)10 kA
Length3.08 in
Weight0.56 lb
Number of Openings per Pole (Secondary)4
Hex/Screw Size & Type (Secondary)1/4-28 x .38
Torque Rating (Secondary)#4-#6 35; #8 25; #10-#14 20
Hole Diameter (Secondary)0.25 in
Connector Type (Secondary)Box
MaterialGlass Filled Polycarbonate
Ampere Rating (Aluminum)65 A
UL ListedUL Listed to subject 1953
RoHS CompliantYes
