Bussmann 16370-3 Power Distribution Block 600 Vac, 310A, Three-Pole, 5 Inch Width, Black
- MPN: 16370-3
- UPC: 051712271363
- PPN: BUS-16370-3
CAD
$286.10
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

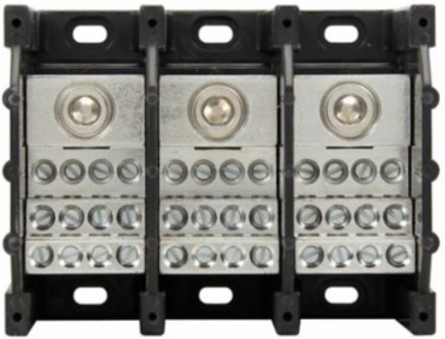

Power Distribution Block 600 Vac, 310A, Three-Pole, 5 Inch Width, Black
Features
- This heavy-duty power distribution block (PDB) features a 3-pole design that allows you to manage three separate electrical phases within a single, compact footprint. By centralizing your primary power feed and splitting it into multiple branch circuits, you significantly reduce the complexity of your industrial control panel wiring, saving both labor time and enclosure space during installation.
- Specifically engineered to handle demanding electrical loads up to 310 Amps at 600V (AC/DC), this block is the ideal solution for large motor control centers, HVAC chillers, and industrial heating systems. The high ampacity rating ensures the block operates coolly under heavy continuous loads, preventing heat-related voltage drops and protecting the integrity of your downstream sensitive electronic components.
- Equipped with one large primary opening (per pole) that accepts 6 AWG to 350 kcmil conductors and one secondary opening for flexible output, this block provides exceptional versatility for feeder-to-branch connections. The rugged aluminum alloy construction is tin-plated to prevent oxidation, ensuring a low-resistance, high-conductivity termination for both copper and aluminum wiring.
- Fully UL 1059 Recognized and CSA Certified, this component is designed to withstand the rigors of commercial and industrial environments. It provides the necessary 10kA Short Circuit Current Rating (SCCR) when properly installed, ensuring your equipment meets National Electrical Code (NEC) standards and protecting your facility from liability risks associated with non-compliant electrical hardware.
Documentation & Downloads
Specifications
Additional
- Amperage
- 310 A
- Number of Poles
- Three-pole
- Height
- 3.22 in
- Weight
- 1.86 lb
- Compliance
- Contact factory
Voltage600 Vac, 600 Vdc
Width5 in
Length/Depth3.98 in
MaterialMolded thermoplastic, Tin plated aluminum
