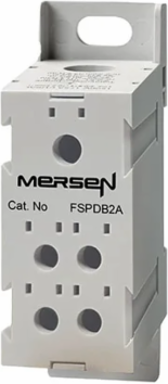

Mersen FSPDB2A UL1059 600V 175A 1-Pole Finger-Safe Power Distribution Block with 4 Openings
- MPN: FSPDB2A
- UPC: 782001319601
- PPN: FER-FSPDB2A
CAD
$39.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
FSPDBs introduce a new level of safety and ease for installing power distribution blocks. An IP20 level of finger safe protection is achieved using the FSPDBs and thus eliminates the need for special covers or custom Plexiglas sheets to protect your panels. FSPDBs (sizes 1 to 4) simply snap onto 35mm DIN rail to provide the quickest installation. And since they are modular, you can form any number of poles desired. If multi-pole panel mounting is desired, multiple-pole assembly pins are available. FSPDBs provide a safe, convenient way of splicing cables, splitting primary power into a variety of secondary circuits or providing a fixed junction tap-off point.
Features
- Engineered with fully insulated nylon housings and deeply recessed termination screws, this unit provides certified IP20 touch safety right out of the box. By eliminating the need for expensive plexiglass shields or custom barrier covers, it reduces installation costs while satisfying strict safety mandates for high-density industrial control panels.
- Featuring a high-conductivity, tin-plated aluminum box connector setup, the single-pole architecture accepts one primary input wire ranging from 14 to 2/0 AWG and splits it into four independent secondary lines ranging from 14 to 2 AWG. This layout makes it easy to divide main feeder lines into distinct sub-circuits, speeding up wiring for industrial machinery and multi-motor setups.
- When paired with appropriate upstream protection—such as 200A Class J, T, or RK1 current-limiting fuses—this distribution block achieves a high short-circuit current rating (SCCR) of 100 kA. This exceptional fault-withstand capability keeps industrial automation lines compliant with modern panelboard safety standards and prevents catastrophic explosive damage during downstream electrical failure
- Built with an integrated DIN-rail adapter on a compact, space-saving footprint, this modular block snaps directly onto standard 35mm DIN rails without requiring extra baseplates or mounting hardware. The layout allows for quick multi-pole configurations using simple assembly pins, and features captive termination screws that cannot be lost or dropped during field installation.
Documentation & Downloads
Specifications
Additional
- Voltage
- 1500 V AC/DC UL rated
- Frequency
- 50/60 Hz
- Short Circuit Rating (Class RK1)
- 100 kA with 200A Fuse
- Short Circuit Rating (Class T)
- 100 kA with 200A Fuse
- Short Circuit Rating (Class G)
- 100 kA with 60A Fuse
- Short Circuit Rating (Class L)
- Not Tested
- Number of Poles
- 1-Pole
- Number of Openings per Pole (Secondary)
- 4
- Width
- 2.21 in
- Weight
- 0.7 lb
- Hole Diameter (Secondary)
- 0.32 in
- Wire Range (Secondary)
- #2-#14 AWG
- Ampere Rating (AL)
- 175 A
- Torque Rating (Secondary)
- #2-#6 80 in-lb; #8-#14 35 in-lb
- Connector Type (Secondary)
- Box
- Mounting
- Snap on 35mm DIN rail
- Body/Insulating Material
- Nylon
- Finger-Safe Protection
- IP20
Amperage175 A
Short Circuit Rating (Standalone)10 kA
Short Circuit Rating (Class J)100 kA with 200A Fuse
Short Circuit Rating (Class RK5)100 kA with 100A Fuse
Short Circuit Rating (Class CC)100 kA with 30A Fuse
AC or DCAC/DC
Number of Openings per Pole (Primary)1
Length3.45 in
Height2.21 in
Hole Diameter (Primary)0.45 in
Wire Range (Primary)2/0-#14 AWG (70-2.5 mm²)
Ampere Rating (CU)175 A
Torque Rating (Primary)2/0-#1 100 in-lb; #2-#6 80 in-lb; #8-#14 35 in-lb
Connector Type (Primary)Box
Installation MountingScrew Mount or DIN Rail
Connector MaterialTin-plated Aluminum
ROHS CompliantYes
