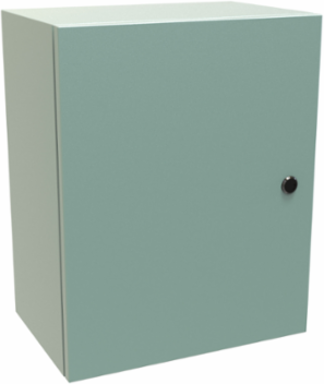

Hammond Manufacturing EN4SD201610GY ECLIPSE N4 1 DR. WALLMOUNT - 20 x 16 x 10
- MPN: EN4SD201610GY
- UPC: 623980333649
- PPN: HAM-EN4SD201610GY
- UNSPSC: 39121324
CAD
$316.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
N4,12 Eclipse encl. - 20 x 16 x 10 - Steel/Gray
Documentation & Downloads
Specifications
Additional
| Type Rating | Type 3R, Type 4, Type 12 |
|---|---|
| Material | Mild Steel |
| Width | 16 in. |
| Weight | 30 lbs |
| UL File # | E65324 |
| RoHS Compliant | Yes |
| Country of Origin | Canada |
| Construction | Welded seams, poured-in-place gasket, 304 stainless steel hinges |
| Gauge | 14 or 16 gauge steel |
| Hinge Material | 304 Stainless Steel |
| Door Swing | Reversible with adapter kit |
| Doors | 1 Door |
| Standards | UL, CSA, CE |
| IP Rating | IP66 |
|---|---|
| Height | 20 in. |
| Depth | 10 in. |
| Panel | Available (sold separately) |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes |
| Series | Eclipse |
| Finish | ANSI 61 Gray Powder-Coated |
| Latch Type | Quarter-turn handle with 3-point latching (Type B) |
| Latch Material | Zinc diecast with black epoxy finish |
| Inner Panel Dimensions | 18.20 x 14.20 in. |
| Application | Wallmount |
