Tripp Lite TLP76MSGB ECO-Surge 7-Outlet Surge Protector, 1080 Joules, 6 ft Cord
Tripp Lite TLP76MSGB ECO-Surge 7-Outlet Surge Protector, 1080 Joules, 6 ft Cord
- MPN: TLP76MSGB
- UPC: 037332205810
- PPN: TRP-TLP76MSGB
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$78.34/ EA
Description
Environmentally friendly surge protector with individually controlled outlets safeguards your PC, printer, scanner, router, phone, fax, modem and other home/office electronics against dangerous surges, spikes and line noise.
Features
- 7 NEMA 5-15R outlets—6 with individual on/off switches
- 1080-joule surge protection rating
- Filters out threatening EMI/RFI line noise
- Automatic shutoff protects against dangerous overloads

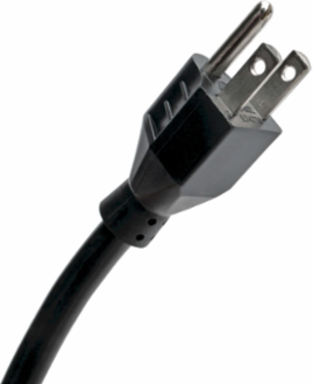

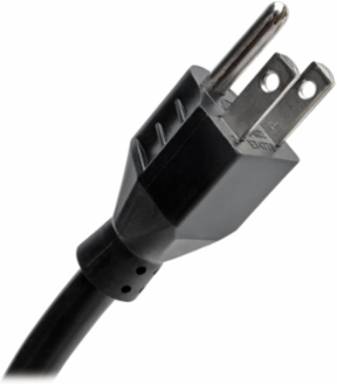

- 6 ft. AC power cord with NEMA 5-15P plug
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- $25,000 Ultimate Lifetime Insurance
- ECO-Surge Protector with Green Power-Saving Outlets
- 1080-Joule Surge Protection for Home or Office Electronics
- Premium Safety Features

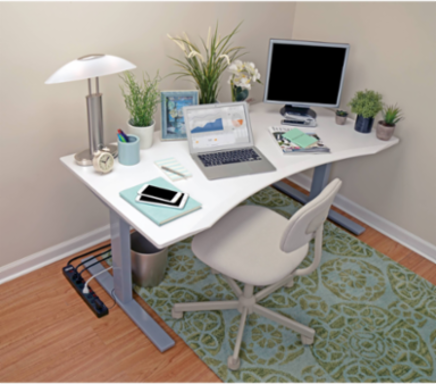

- Fits Effortlessly Into Your Workstation
- Backed by Tripp Lite’s Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- AC Suppression Joule Rating
- 1080
- Protection Modes
- Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression.
- UL1449 Let Through Rating
- 400v
- Automatic Shut-Off
- Yes
AC Suppression Response Time< 1 ns
Clamping Voltage (RMS)150
EMI / RFI FilteringUp to 40 dB
Certifications
- UL1449 3rd Edition (AC Suppression)
- UL1449 3rd Edition
- Canada
- cUL
UL1363 (Power Tap)UL1363
ApprovalsExceeds IEEE 587 category A&B specifications
Dataline Surge Suppression
- Telephone/DSL Protection
- No
- Network (Ethernet) Protection
- No
Cable (Coax) ProtectionNo
Physical
- Anti-Microbial Protected
- No
- Color (AC Line Cord)
- Black
- Material of Construction
- Plastic
- Shipping Dimensions (hwd / in.)
- 2.00 x 4.20 x 17.00
- Unit Dimensions (hwd / in.)
- 1.40 x 3.40 x 15
ColorBlack
Integrated Keyhole Mounting SlotsYes
Receptacle ColorBlack
Shipping Weight (lbs.)1.80
Unit Weight (lbs.)1.54
User Interface, Alerts & Controls
- Diagnostic LED(s)
- Yes
- LED Indicators

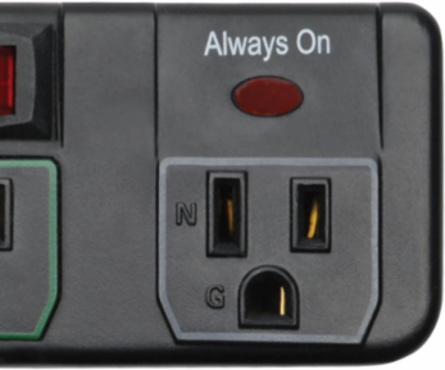

- Protected (Green)" & Always On Receptacle (Red)
Switches1 x Lighted Master Switch & 6 x Lighted Receptacle Switches
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Input Cord Gauge Type
- 14 gauge; SJT
- Maximum Surge Amps
- 72000
- Input Cord Length (ft.)
- 6
- Integrated Cord Clip
- No
Recommended Electrical Service120V (110-125V)
Voltage Compatibility (VAC)120
Input Plug TypeNEMA 5-15P
Right-Angle PlugNo
Output
- Output Volt Amp Capacity (VA)
- 120
- Frequency Compatibility
- 60 Hz
- Output Receptacles
- (7) 5-15R
- Right-Angle Outlets
- Yes
Output Watt Capacity (Watts)1800
Output (Watts)1800
Transformer Accommodation(4) Yes
Individually Controllable Load BanksYes
Overview
- UPC Code
- 037332205810
Special Features
- Rotatable Outlets
- No
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$25,000 Ultimate Lifetime Insurance
