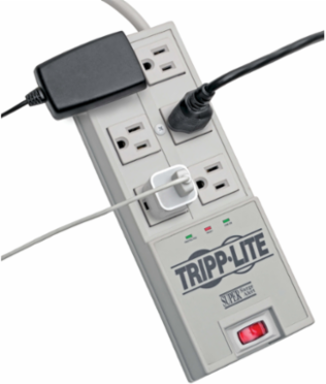

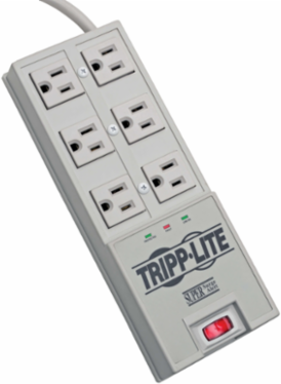

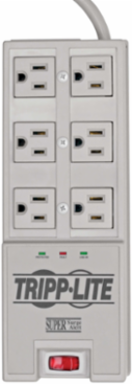

Tripp Lite TR-6 6-Outlet Surge Protector with 2420 Joules, 6 ft Cord, Diagnostic LEDs
- MPN: TR-6
- UPC: 037332010315
- PPN: TRP-TR-6
CAD
$90.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
6-Outlet Surge Protector with 2420 Joules, 6 ft Cord, Diagnostic LEDs
Features
- 6 outlets/6 ft. cord
- 2420 joule rating
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- $50,000 Ultimate Lifetime Insurance
Documentation & Downloads
Specifications
Additional
- Surge Energy Absorption
- 2420 joules
- Circuit Breaker
- 15 amp
- Frequency Compatibility
- 50 / 60 Hz
- Clamping Voltage (RMS)
- 140 V
- AC Suppression Response Time
- < 1 ns
- Immunity
- Conforms to IEEE 587 / ANSI C62.41

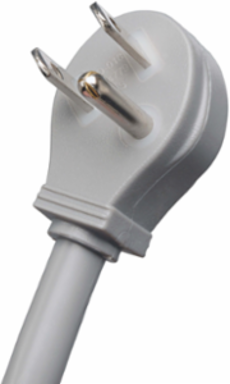

- Plug Type
- NEMA 5-15P right-angle

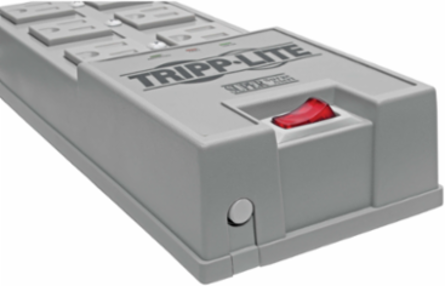

- Switches
- Two position red illuminated on/off power switch
- Right-Angle Plug
- Yes
- Rotatable Outlets
- No
- Automatic Shut-Off
- Yes
- Weight
- 1.6 lbs

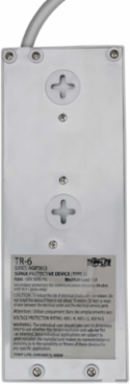

- Keyhole Slot Mounting Measurement
- 88.8 mm
- Input Cord Length
- 6 ft
- UL Listed
- Tested to UL1449 3rd Edition by ETL
- Approvals
- Exceeds IEEE 587 category A&B
- Warranty
- Lifetime limited warranty
Surge Current Rating78,500 amps
Nominal Input Voltage120V AC
Output Wattage1800 W
Protection ModesNormal mode (H-N) and common mode (N-G / H-G) surge suppression
Voltage Compatibility120 V AC (110-125 V)
Input Cord Gauge14 gauge; SJT
Diagnostic LEDsProtection present (green), Line fault (red), Line OK (green)
Output Receptacles6 (5-15R)
Right-Angle OutletsNo
Transformer Accommodation3
Dimensions (H x W x D)1.75 x 3.5 x 9.5 in
Integrated Keyhole Mounting SlotsYes
Outlets Measurement (Center to Center)Horizontal 44.20 mm, Vertical 39 mm
MaterialPlastic
UL1449 Let Through Rating400 V
ColorLight Gray
Connected Equipment Insurance$50,000 Ultimate Lifetime Insurance (U.S., Canada, Puerto Rico)
