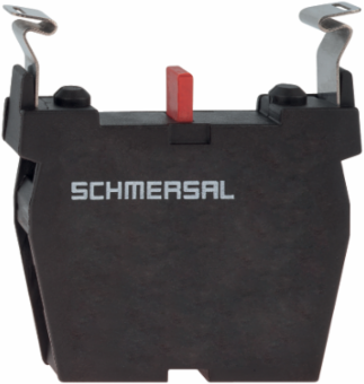

Schmersal 101006584 EF303S.1 Terminal Block Contacts
- MPN: 101006584
- PPN: SCM-101006584
CAD
$38.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
EF303S.1 Terminal Block Contacts
Documentation & Downloads
Specifications
Additional
- Mechanical Lifetime
- 10,000,000 Operations
- Utilisation Category AC-15 Voltage
- 230 VAC
- Utilisation Category DC-13 Voltage
- 24 VDC
- Rated Insulation Voltage
- 400 V
- Resistance to Shock
- 110 g / 4 ms
- Length
- 46 mm
- Depth
- 60 mm
- Contact Material
- Silver
- Degree of Protection of Clips or Terminals
- IP20
- Positive Break Travel
- 2 mm
- Number of Normally Closed (NC) Contacts
- 1
- Mounting Flange Position
- 1
- Cable Section Minimum
- 0.5 mm8 rigid, 0.5 mm8 flexible
- Suitable for Low Voltages
- 8 5 V / 8 3.2 mA
Thermal Test Current10 A
Utilisation Category AC-15 Current8 A
Utilisation Category DC-13 Current5 A
Ambient Temperature Range-25 to +80 C
Resistance to Vibration20 g / 10-200 Hz
Width10 mm
Housing MaterialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Degree of Protection of Switch RoomsIP40
DesignSlow action
Contact Opening3 mm
Number of Normally Open (NO) Contacts1
Type of Electrical ConnectionScrew terminals
Cable Section Maximum2.5 mm8 rigid, 1.5 mm8 flexible
Bounce Duration Maximum5 ms
