Schmersal

Schmersal 101166022 Light Terminal Block ELDE.NRT230, 30mm Width, 250VAC, Integrated LED

  • MPN: 101166022
  • PPN: SCM-101166022

CAD

$157.98

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Light Terminal Block ELDE.NRT230, 30mm Width, 250VAC, Integrated LED

Documentation & Downloads

Specifications

Key Specifications

Length46 mm
Depth60 mm
Width30 mm

Electrical data

Operating voltage250 VAC -10 % / +10 %
Rated operating voltage250 VAC

Mechanical data - Dimensions

Width30 mm
Depth60 mm

Ambient conditions - Insulation values

Rated insulation voltage U440 V

General data - Features

Integral system diagnostics, generalYes

General data

StandardsEN IEC 60947-5-1 | EN IEC 60947-1
DesignWith integrated LED
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
VersionsLED modulet
Installation conditions (mechanical)arbitrarily
Gross weight25 g

Ambient conditions

Degree of protection of clips or terminalsIP20
Ambient temperature-25 ... +80 °C

Mechanical data - Connection technique

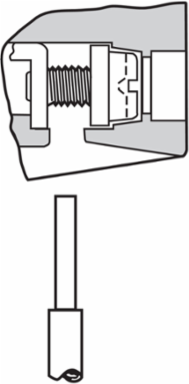

TerminationScrew terminals
Cable section, minimum0.5 mm², rigid | 0.5 mm², flexible
Terminal designationsEN 50005 | EN 50013
Cable section, maximum2.5 mm², rigid | 1.5 mm², flexible

Mechanical data

Installation instructionspluggable
Mounting flange position3

Approvals - Standards

CertificatescULus | CCC

Status indication

Colour of the LEDRed
Note (LED switching conditions display)Supply voltage UB: 230 VAC
Light Terminal Block ELDE.NRT230, 30mm Width, 250VAC, Integrated LED
Light Terminal Block ELDE.NRT230, 30mm Width, 250VAC, Integrated LED
Light Terminal Block ELDE.NRT230, 30mm Width, 250VAC, Integrated LED
