Federal Signal 225XL-120-240G Electraray LED Light, Hazardous Location, UL and cUL CID2, 120-240VAC, Green, Default Flashing
- MPN: 225XL-120-240G
- UPC: 782979224570
- PPN: FDS-225XL-120-240G
- UNSPSC: 39111706
CAD
$1369.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

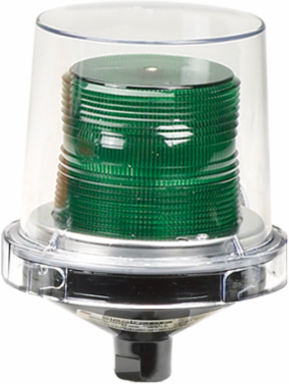

Model 225XL is a hazardous location flashing signal light that is available in 24VAC/DC and 120-240VAC self detecting voltage. Model 225XL comes standard in flashing mode and is field configurable to steady-burn mode for maximum functionality.This hazardous location warning light has a black polyurethane-coated base and the inner fresnel lens. The clear polycarbonate outer dome can be quickly removed for access while changing the LED or inspecting the unit.Model 225XL is ideal for wet, corrosive atmospheres like those found in food processing industries or anywhere a vibration-resistant visual signal is needed.
Features
- Available in 24VAC/DC and 120-240VAC
- Five lamp/lens colors: Amber, Blue, Clear, Green and Red
- Flashing mode standard, configurable to steady-burn
- 50,000 hour, vibration-resistant LED lamp
- 1/2-inch NPT pipe mount
- Type 4X, IP66 enclosure
- IP69K compliant
- Marine Listed
- UL and cUL for Class I, Division 2, Groups A, B, C and D; Class II Division 2, Groups F and G; Class III
- NSF Certified
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Body Color
- Black
- Certification Listing
- Marine, UL, cUL, NSF
- Diameter (mm)
- 139.7
- Flashes Per Minute
- 60
- Lens Color
- Green
- Operating Temp.
- -58˚ to +150˚F (-50˚ to +66˚C)
- Visual Signals Lens Color
- Green
- Depth
- 7.5 in, 19.05 cm
- Diameter
- 5.5 in, 13.97 cm
Weight3.2 lbs
Candela Power Peak238
Diameter (in)5.5
Flash Pattern Type1x Flash or Steady
AvailabilityContact Us for Availability
Mount Type1/2-Inch NPT Pipe
Operating Voltage120-240 Vac
Visual Signals Operating Voltage120-240VAC
Height7.5 in, 19.05 cm
