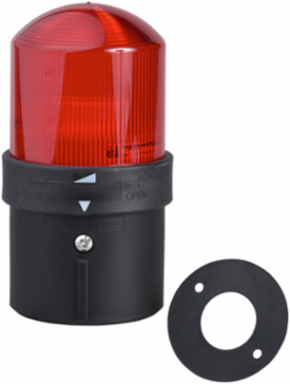

Schneider Electric XVBL4M4 Harmony XVB Complete Beacon, 70mm, Red, Flashing, IP65

  • MPN: XVBL4M4
  • PPN: SCH-XVBL4M4
  • UNSPSC: 32151503
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $249.43

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This illuminated complete beacon is designed as lighting accessory for tower light. Its integral LED offers a flashing light pattern, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

    Features

    • 3 types of light source: 10 Watt incandescent bulb, built-in high-efficiency LEDs, 5 and 10-joule discharge tube
    • Fully flexible and interchangeable construction of up to 5 lens units (six colors of light lens unit)
    • Connector with removable base, axial, or side cable entry, immediate assembly, and fixing using a locking ring
    • 100,000 hours of maintenance-free lighting thanks to "LED Protected" technology
    • High degree of protection(IP66) and Shock resistence(lK05)

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginCzechia
    Weight277 g

    Physical Attributes

    Cad Overall Depth70 mm
    Cad Overall Width70 mm
    Cad Overall Height139 mm

    Complementary Attributes

    Maximum Power Dissipation In W7 W
    Uimp Rated Impulse Withstand Voltage4 kV IEC 60947-1
    Ui Rated Insulation Voltage250 V IEC 60947-1
    Us Rated Supply Voltage48...230 V AC

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Beacon Or Indicator Bank Unit Typebase unit direct or tube fixing, illuminated unit
    Certificate AgencyCCC, EAC, CSA C22-2 No 14, UL 508
    Carbon Footprint Of The Distribution Phase A40.6699550007232994, 0.7 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.001719083727908118, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6208 kg CO2 eq., 207.63865770946043
    Local Publishable Date2026-01-12
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Electrical Shock Protection Classclass I on support tube IEC 61140class II on base unit IEC 61140
    Important MessageXVB is being substituted by XVB7 as complete range; XVB and XVB7 modules are not interoperable with one another.
    Materialglass reinforced polyamide: base unitpolycarbonate: illuminated unit
    Nominal Voltage Limit0.85...1.1 Un IEC 60947-5-1
    Product Or Component Typecomplete beacon
    Range Of ProductHarmony XVB Universal
    Signalling Typeflashing
    Sustainable PackagingYes
    Connections Terminalsscrew clamp terminals, <= 1 x 1.5 mm² with cable end
    Data Sourceextrapolated product
    Customs Code8531809026
    Functional Unit DescriptionThe major function of the Harmony XVB range of products is to offer optical or audio signalling, specifically to identify the various states or sequences of a machine or installation from a distance and through 360° in life span of 10 years.This product will be active for 73% of the time, with a power consumption of 0.72W and adhering to standards IEC 60947-5-1.
    Functional Unit UnitUnit
    Recyclability Potential In %9
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Bulb Typeincandescent BA 15d, protected LED
    Terminals Description Iso N°1(COM-1)PW, (GND)GROUND, (COM-1)PW, (GND)GROUND
    Carbon Footprint Of The End Of Life Phase C1 To C40.6 kg CO2 eq., 0.5902400184940214
    Carbon Footprint Of The Manufacturing Phase A1 To A33 kg CO2 eq., 2.896863476128975
    Local Data StatusPublishable
    Return IndicatorY
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Component NameXVBL
    Flashing Frequency1 Hz
    Light Sourcebulb not included, red
    Mounting Diameter70 mm
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTC
    ReturnabilityYes
    Software Versionv6.2-6
    Total Lifecycle Carbon Footprint212 kg CO2 eq.
    Database Version2024-04
    Nbr. Of Units In Pkg.1
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y10

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP0709007EN
    Ip Degree Of ProtectionIP65 on fixing base XVBZ0. IEC 60529IP66 on base unit IEC 60529
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2025-02-23
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint211.79743528853464
    Eu Rohs DirectiveCompliant By Exemption
    Nema Degree Of ProtectionUL type 4X UL indoor)
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP0709007EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typecomplete beacon
    Range Of ProductHarmony XVB Universal

    ETIM

    ETIM 8EC001332
    ETIM 10EC001332
    ETIM 9EC001332

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

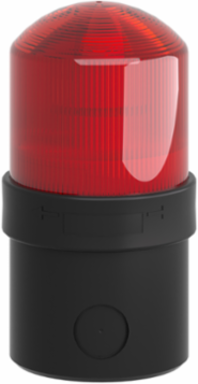

    Harmony XVB Complete Beacon, 70mm, Red, Flashing, IP65

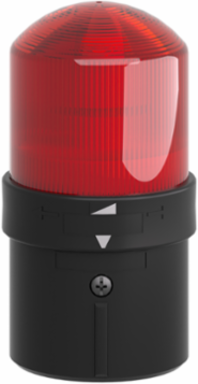

    Harmony XVB Complete Beacon, 70mm, Red, Flashing, IP65

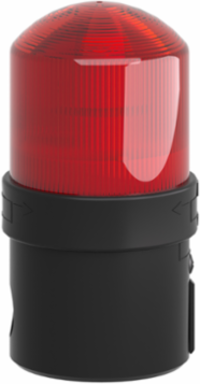

    Harmony XVB Complete Beacon, 70mm, Red, Flashing, IP65

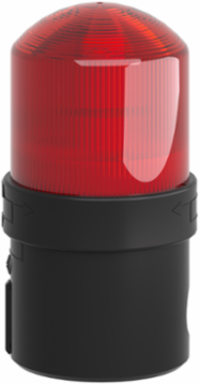

    Harmony XVB Complete Beacon, 70mm, Red, Flashing, IP65
