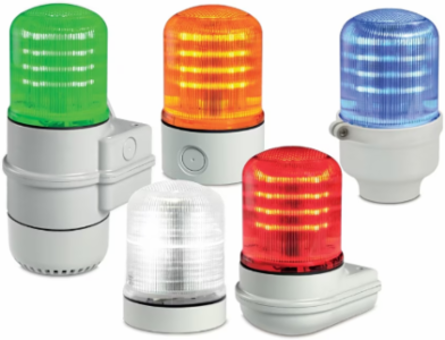

Federal Signal SLM100G StreamLine Modular LED Light, Multifunctional, Steady-Flash-Rotate, UL and cUL, Green, Base Sold Separately
Federal Signal SLM100G StreamLine Modular LED Light, Multifunctional, Steady-Flash-Rotate, UL and cUL, Green, Base Sold Separately
- MPN: SLM100G
- UPC: 782979232087
- PPN: FDS-SLM100G
- UNSPSC: 39111706
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$379.31/ EA
Description
Model SLM100 offers a multifunctional LED beacon with high optical performance. Developed with a multiple input technology, Model SLM100 allows three separate light effects (steady, flashing and rotating) controllable via wiring selection.The steady light option offers a conspicuous and consistent light signal. The flashing mode consists of a triple-flash strobe effect ideal for all applications where an immediate attention gain is mandatory. The rotating light offers a traditional rotating beacon effect without moving parts, which enhances product life.Model SLM100 body material is a self-extinguishing polycarbonate material with high impact and UV resistance suitable for outdoor applications.* Recent changes have been made to this product line. Previous product data can be found in the documents below or by visiting SLM Documents or Rev A Tones
Features
- Compatible with 12-24VAC/DC or 120-240VAC*
- PLC compatible with PNP or NPN connections (Except Dock Base, only NPN)
- Three separate inputs: steady, flashing and rotating
- 100,000 hour LED
- Five lamp/lens colors: Amber, Blue, Clear, Green and Red
- Seven mounting base options
- Type 4X, IP66 enclosure
- IP69K** compliant
- CE Certified
- UL and cUL Listed
Specifications
Specifications
- Country of Origin
- Italy
- Body Color
- Gray, Red
- Diameter (in)
- 3.9
- Flash Pattern Type
- Steady/Flashing/Rotating
- Availability
- In Stock - Ships in 2 Bus Days
- Mount Type
- 2-Stack Dock Base, 3-Stack Dock Base, Deep Base, Shallow Base, Twin Mount, Pipe, Wall
- Operating Voltage
- 12-24VAC-DC, 120-240VAC
- Depth
- 4.23 in, 10.7442 cm
- Diameter
- 3.9 in, 9.906 cm
Weight0.44 lbs
Certification ListingCE, UL, cUL
Diameter (mm)99.06
Flashes Per MinuteFlash Mode 85 (+/-10), Rotating Mode 120 (+/-10)
Lens ColorGreen
Operating Temp.-40˚ to +131˚F (-40˚ to +55˚C)
Visual Signals Lens ColorGreen
Height4.23 in, 10.7442 cm
