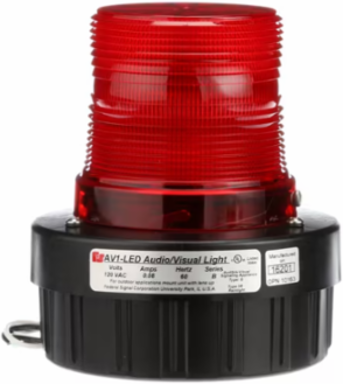

Federal Signal AV1-LED-120R Audible Visual Flashing LED Light, UL and cUL, 120VAC, Red
- MPN: AV1-LED-120R
- UPC: 782979227601
- PPN: FDS-AV1-LED-120R
- UNSPSC: 39111706
CAD
$521.93
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Model AV1-LED is a combination audible/visual signal featuring a 100% polycarbonate housing that is rated for Type 3R rain-tight applications.All AV1-LED units utilize a twist-and-lock lens design to allow for tool-free access to the LED. The fresnel lens provides superior visibility in all directions.The integrated buzzer can be set to continuous or intermittent and provides 85 dBA at 10' (95 dBA at 1 m). The unit can operate in one of two ways: LED/buzzer combination or LED only. The LED can be programmed to steady or two different flash patterns (60 FPM or 75 FPM). This is achieved through jumpers on the PC board.Each unit is factory-assembled with two color-coded leads. If desired, the user can remove the leads and connect directly to the terminal block located in the base of the unit.
Features
- Available in 24 Vdc and 120 Vac
- Five lamp/lens colors: Amber, Blue, Clear, Green and Red
- 50,000-hour LED
- Surface, integrated 1/2-inch NPT pipe, and 4-inch electrical box mount
- Twist-off lens for easy access
- Internal buzzer produces 85 dBA at 10' (95 dBA at 1m)
- Flexible operation allows the unit to independently flash without buzzer
- PLC compatible
- Type 3R enclosure
- UL and cUL Listed
Documentation & Downloads
Specifications
Additional
| Voltage | 120 Vac |
|---|---|
| Flash Rate | 60/75 FPM |
| Operating Temperature | -31o to 150oF (-35o to 66oC) |
| Diameter | 5.76 in |
| Material | Polycarbonate |
| Compliance | UL Listed, cUL Listed |
| Operating Current | 0.03 A |
|---|---|
| Audible Output | 85 dBA at 10 ft, 95 dBA at 1 m |
| Height | 6.48 in |
| Mount | 1/2-inch NPT Pipe/Surface |
| Enclosure Type | Type 3R |
| Color | Red |
