Federal Signal

Federal Signal SLM100A StreamLine Modular LED Light, Multifunctional, Steady-Flash-Rotate, UL and cUL, Amber, Base Sold Separately

  • MPN: SLM100A
  • UPC: 782979232056
  • PPN: FDS-SLM100A
  • UNSPSC: 39111706

CAD

$379.31

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

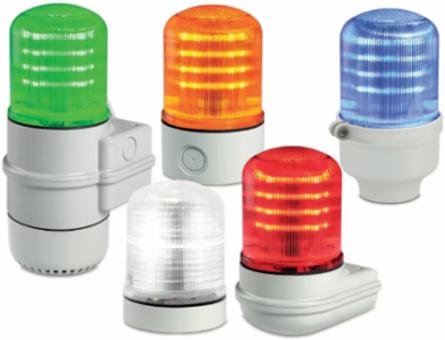

Model SLM100 offers a multifunctional LED beacon with high optical performance. Developed with a multiple input technology, Model SLM100 allows three separate light effects (steady, flashing, and rotating) controllable via wiring selection.The steady light option offers a conspicuous and consistent light signal. The flashing mode consists of a triple-flash strobe effect ideal for all applications where an immediate attention gain is mandatory. The rotating light offers a traditional rotating beacon effect without moving parts, which enhances product life.Model SLM100 body material is a self-extinguishing polycarbonate material with high-impact and UV resistance suitable for outdoor applications.

Features

  • Compatible with 12-24 Vac/dc or 120-240 Vac*
  • PLC compatible with PNP or NPN connections (Except Dock Base, only NPN)
  • Three separate inputs: steady, flashing, and rotating
  • 100,000-hour LED
  • Five lamp/lens colors: Amber, Blue, Clear, Green and Red
  • Seven mounting base options
  • Type 4X, IP66 enclosure
  • IP69K** compliant
  • CE and UKCA compliant
  • UL and cUL Listed

Documentation & Downloads

Specifications

Key Specifications

Country of OriginUnited States
Weight0.44 lbs
Certification ListingCE, UL, cUL
Flash Pattern TypeSteady/Flashing/Rotating
AvailabilityIn Stock - Ships in 2 Bus Days
Mount Type2-Stack Dock Base, 3-Stack Dock Base, Deep Base, Shallow Base, Twin Mount, Pipe, Wall
Operating Voltage12-24 Vac/dc, 120-240 Vac
Environmental RatingOrdinary Location
Lead TimeIn Stock - Ships in 2 Bus Days
Height4.23 in
Body ColorGray, Red
Diameter3.9 in (99.06 mm)
Flashes Per MinuteFlash Mode 85 (+/-10), Rotating Mode 120 (+/-10)
Lens ColorAmber
Operating Temp.-40˚ to +131˚F (-40˚ to +55˚C)
Visual Signals Lens ColorAmber
Enclosure RatingIP66, IP69K, Type 4X
Product Life Cycle StatusCompleted
StreamLine Modular LED Light, Multifunctional, Steady-Flash-Rotate, UL and cUL, Amber, Base Sold Separately
