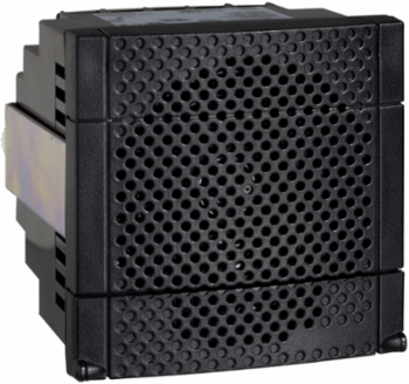

Schneider Electric XVS72BMBN Harmony XVS Black Electronic Alarm, 0-90 dB, NPN, 72 mm DIN Rail
- MPN: XVS72BMBN
- PPN: SCH-XVS72BMBN
CAD
$249.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This black electronic alarm is part of the range of multi sound sirens and alarms Harmony XVS. This multisound alarm provides 16 tones and is supplied pre-cabled. It can be supplied with 12V to 24V AC/DC and features NPN output type. It allows imple integration with your applications featuring a compact body that’s 20% thinner than the competition. Its protection index is IP54. It weighs 180g. It provides PC (polycarbonate) terminal cover and ABS (acrylonitrile butadiene-styrene) body part. It is designed for long distance signaling applications, used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels. It is CE, UL and CSA certified. It can be mounted on 72mm DIN rail.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States

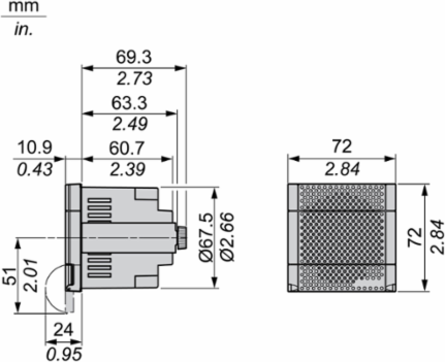

Depth69.3 mm
Physical Attributes
- Color
- Black
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- 117 mA 12 V, 125 mA 24 V, 158 mA 12 V, 200 mA 24 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0348360284, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0050711773, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 4 kg CO2 eq., 4.120239521
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2312027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Device Short Name
- XVS
- Mounting Support
- 72 mm DIN rail
- Overvoltage Category
- class II conforming to IEC 61140
- Product Or Component Type
- electronic alarm
- Range Of Product
- Harmony XVS
- Signalling Type
- 16 tones alarm
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2312027EN
- Pep Verification Date
- 2018-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Height Nominal
- 72 mm
- Certificate Agency
- UR
- [Us] Rated Supply Voltage
- 12...24 V DC
- Package Weight(Lbs)
- 0.27 kg
- Warranty (In Months)
- 18
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 10.464
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
MaterialABS (acrylonitrile butadiene-styrene): body, PC (polycarbonate): terminal cover
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0932440798
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 2.6857966847
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
MarkingCE
Noise Level0-90 dB continuous or intermittent tone)1 m
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Software VersionEIME v5.8.0
Total Lifecycle Carbon Footprint7 kg CO2 eq.
Database Version2018-09
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo monitor an event by providing audible signaling/voice for safety alarm in public areas and factory applications during 10 years with a 30% use rate, in compliance with French standard.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh8.4096
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Width Nominal72 mm
[Uimp] Rated Impulse Withstand Voltage0.8 kV
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]10.464
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C, -10-50 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 6.9391874912
- Environmental Disclosure
- ENVPEP2312027EN
- Ip Degree Of Protection
- panel mounted IP54 IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2312027EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-35-70 °C, -35-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2312027EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2018-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- electronic alarm
Range Of ProductHarmony XVS
ETIM
- ETIM 8
- EC000195
ETIM 9EC000195
Output Attributes
- Discrete Output Type
- NPN
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
