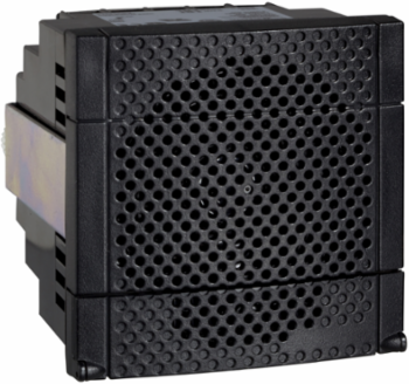

Schneider Electric XVS72BMBP Harmony XVS Electronic Alarm, 0-90 dB, PNP Output, 12-24V DC, IP54
Schneider Electric XVS72BMBP Harmony XVS Electronic Alarm, 0-90 dB, PNP Output, 12-24V DC, IP54
- MPN: XVS72BMBP
- PPN: SCH-XVS72BMBP
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$249.43/ EA
Description
This black electronic alarm is part of the range of multi sound sirens and alarms Harmony XVS. This multisound alarm provides 16 tones and is supplied pre-cabled. It can be supplied with 12V to 24V DC and features PNP output type. It allows imple integration with your applications featuring a compact body that’s 20% thinner than the competition. Its protection index is IP54. It weighs 180g. It provides PC (polycarbonate) terminal cover and ABS (acrylonitrile butadiene-styrene) body part. It is designed for long distance signaling applications, used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels. It is CE, UL and CSA certified. It can be mounted on 72mm DIN rail.
Specifications
Environment
- Product Certifications
- UR
- Ambient Air Temperature For Operation
- -10-50 °C
- Ip Degree Of Protection
- panel mounted IP54 IEC 60529
- Ambient Air Temperature For Storage
- -35-70 °C
- Protective Treatment
- TC
Discrete Output TypePNP
StandardsUL 464 || IEC 61000-6-3 || IEC 61000-6-2
Signalling Type16 tones alarm
Noise Level0-90 dB continuous or intermittent tone)1 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1311010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1311010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 72 mm
- Mounting Support
- 72 mm DIN rail
- Net Weight
- 0.18 kg
- Current Consumption
- 117 mA 12 V || 125 mA 24 V || 158 mA 12 V || 200 mA 24 V
- Colour
- black
- Material
- ABS (acrylonitrile butadiene-styrene): body || PC (polycarbonate): terminal cover
- Depth
- 69.3 mm
Clamping Connection Capacity<= 1 x 1.5 mm²
MarkingCE
[Uimp] Rated Impulse Withstand Voltage0.8 kV
[Us] Rated Supply Voltage12...24 V DC
Overvoltage Categoryclass II IEC 61140
Width72 mm
Specifications
- Range Of Product
- Harmony XVS
- Device Short Name
- XVS
Product Or Component Typeelectronic alarm
