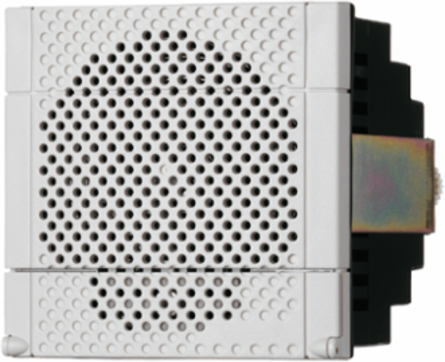

Schneider Electric XVS72BMWN Electronic Alarm, Harmony XVS, IP54, 72 mm, 0-90 dB, 16 Tones
- MPN: XVS72BMWN
- PPN: SCH-XVS72BMWN
CAD
$249.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This electronic alarm is an accessory designed as an audible and signaling unit for custom assembly It has a DIN72 connector and is dust resistant and water resistant thanks to its IP54 protection, making it ideal for operation in harsh environments The alarm is white High performance International standards & certifications (IP54)
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia
Depth69.3 mm
Physical Attributes
- Color
- White
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- 117 mA 12 V, 125 mA 24 V, 158 mA 12 V, 200 mA 24 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0340618945, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0049584844, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 4 kg CO2 eq., 4.120239521
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Marking
- CE
- Noise Level
- 0-90 dB continuous or intermittent tone)1 m
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- Yes
- Software Version
- EIME v5.8.0
- Total Lifecycle Carbon Footprint
- 7 kg CO2 eq.
- Database Version
- 2018-09
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor an event by providing audible signaling/voice for safety alarm in public areas and factory applications during 10 years with a 30% use rate, in compliance with French standard.
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 8.4096
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 72 mm
- [Uimp] Rated Impulse Withstand Voltage
- 0.8 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 10.464
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
MaterialABS (acrylonitrile butadiene-styrene): body, PC (polycarbonate): terminal cover
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0911719892
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 2.6261123139
Local Data StatusPublishable
Return IndicatorY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2312027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Short NameXVS
Mounting Support72 mm DIN rail
Overvoltage Categoryclass II conforming to IEC 61140
Product Or Component Typeelectronic alarm
Range Of ProductHarmony XVS
Signalling Type16 tones alarm
Sustainable PackagingYes
Pep CodeENVPEP2312027EN
Pep Verification Date2018-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal72 mm
Certificate AgencyUR
[Us] Rated Supply Voltage12...24 V DC
Package Weight(Lbs)264 g
Warranty (In Months)18
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]10.464
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C, -10-50 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 6.876544203
- Environmental Disclosure
- ENVPEP2312027EN
- Ip Degree Of Protection
- panel mounted IP54 IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2312027EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-35-70 °C, -35-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2312027EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2018-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- electronic alarm
Range Of ProductHarmony XVS
ETIM
- ETIM 8
- EC000195
ETIM 9EC000195
Output Attributes
- Discrete Output Type
- NPN
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
