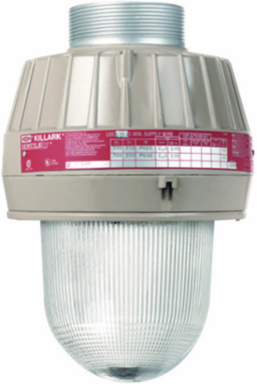

Killark EML4030 LED High Bay/Low Bay Light, 40 Watt, 3479 Lumens, Hazardous Rated, 120-277 VAC
- MPN: EML4030
- UPC: 783936084404
- PPN: HBL-EML4030
CAD
$2212.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The EML Series LED High Bay/ Low Bay fixtures are high quality explosion proof light fixtures. Designed to go into the harshest environments where explosive vapors are present .
Features
- Compact Explosion-proof with Traditional Industrial Appearance and Suitability
- Fluted or Exclusive Clear Globe
- Dome or Angle Reflectors
- Optional Mounting arrangements including Pendant, Wall, Ceiling, and Stanchion
- EML LED Housings can be retrofitted to existing EZ splice boxes to upgrade from Incandescent, Fluorescent or HID
- Energy Savings – Less than 55 Watts of Power
- Long Life – 50,000 - 55,000 Maintenance Free Hours to 70% Initial Lumens
- Crisp White Light for Excellent Color Rendering – Chromaticity 5000K CCT range approx. 70 CRI
- Ambient suitability -40°C to 55°C
- Instant on – Including after power interruption
- World Voltage 120-277VAC 50/60Hz
- Solder-LESS LED Board Connections – Vibration Resistant
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values - Industry Nomenclature for Hours of use to 70% of Initial Lumens (TM-21+ Cal.)
- Factory Sealed Construction – No external seal required
- Suitable for Paint Spray Booth Applications
- The EML Series LED High Bay/ Low Bay fixtures are high quality explosion proof light fixtures. Designed to go into the harshest environments where explosive vapors are present .
Specifications
Key Specifications
- Country of Origin
- United States
- Lumens
- 3479
- Voltage Rating
- 120-277 VAC
- Engineering Drawing 1 Display Text
- EMLxxxxAxGL 2D - Engineering Drawing
- Engineering Drawing 3 Display Text
- EMLxxxxDxGL 2D - Engineering Drawing
- Frequency Rating
- 50/60 Hz
- Wattage
- 40 W
- Class Code
- D20
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D20D201
- Lumens Per Watt
- 87
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936084404
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Optic TypeGlass Globe - Fluted
Weight26 lb.
Engineering Drawing 2 Display TextEMLxxxxBxGL 2D - Engineering Drawing
Finish TypePowder Epoxy Paint
Mounting TypeLuminaire Only
ARRA CompliantContact Manufacturer
Description - InvoiceEM LED 40W 120-277V FLUTED GL
Harmonization Code9405426000
MSDS FlagNo
Lumen Range2,001-5,000 lm
Light SourceLED
SeriesEML Series
BOX SIZE(in)
NAICS Code3351291100
Certifications
- EU RoHS Indicator
- Contact Manufacturer
