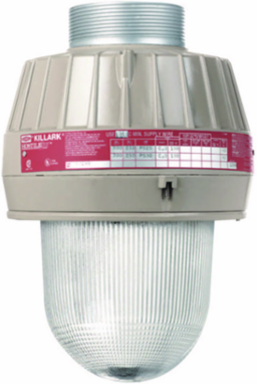

Killark EML4530 LED High Bay/Low Bay Light, 45W, 2880 Lumens, Hazardous Rated, 120-277VAC
- MPN: EML4530
- UPC: 783936072791
- PPN: HBL-EML4530
CAD
$1780.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The EML Series LED High Bay/ Low Bay fixtures are high quality explosion proof light fixtures. Designed to go into the harshest environments where explosive vapors are present .
Features
- Compact Explosion-proof with Traditional Industrial Appearance and Suitability
- Fluted or Exclusive Clear Globe
- Dome or Angle Reflectors
- Optional Mounting arrangements including Pendant, Wall, Ceiling, and Stanchion
- EML LED Housings can be retrofitted to existing EZ splice boxes to upgrade from Incandescent, Fluorescent or HID
- Energy Savings – Less than 55 Watts of Power
- Long Life – 50,000 - 55,000 Maintenance Free Hours to 70% Initial Lumens
- Crisp White Light for Excellent Color Rendering – Chromaticity 5000K CCT range approx. 70 CRI
- Ambient suitability -40°C to 55°C
- Instant on – Including after power interruption
- World Voltage 120-277VAC 50/60Hz
- Solder-LESS LED Board Connections – Vibration Resistant
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values - Industry Nomenclature for Hours of use to 70% of Initial Lumens (TM-21+ Cal.)
- Factory Sealed Construction – No external seal required
- Suitable for Paint Spray Booth Applications
- The EML Series LED High Bay/ Low Bay fixtures are high quality explosion proof light fixtures. Designed to go into the harshest environments where explosive vapors are present .
Specifications
Key Specifications
- ARRA Compliant
- Contact Manufacturer
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Optic Type
- Glass Globe - Fluted
- Engineering Drawing 1 Display Text
- EMLxxxxAxGL 2D - Engineering Drawing
- Engineering Drawing 3 Display Text
- EMLxxxxDxGL 2D - Engineering Drawing
- Frequency Rating
- 50/60 Hz
- Wattage
- 45 W
- Description - Invoice
- EM LED 45W 120-277V FLUTED GL
- Harmonization Code
- 9405429100
- MSDS Flag
- No
- Lumen Range
- 2,001-5,000 lm
- Light Source
- LED
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936072791
Country of OriginUnited States
Lumens3479
Voltage Rating120-277 VAC
Engineering Drawing 2 Display TextEMLxxxxBxGL 2D - Engineering Drawing
Finish TypePowder Epoxy Paint
Mounting TypeLuminaire Only
Class CodeD20
Freight Class Code06316009
Image Actual Or RepresentativeA
Sub Class CodeD20D202
Lumens Per Watt77.3
SeriesEML Series
BOX SIZE(in)
NAICS Code3351222100
Certifications
- EU RoHS Indicator
- Contact Manufacturer
