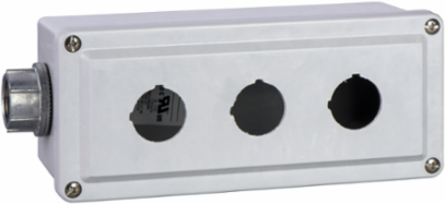

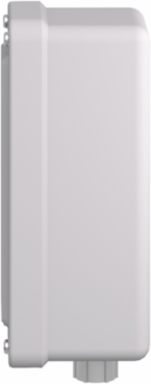

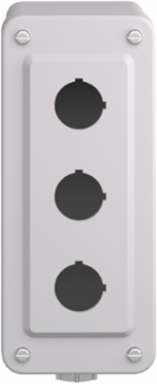

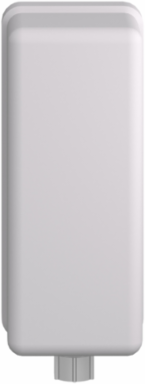

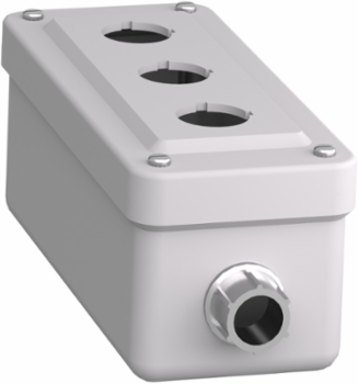

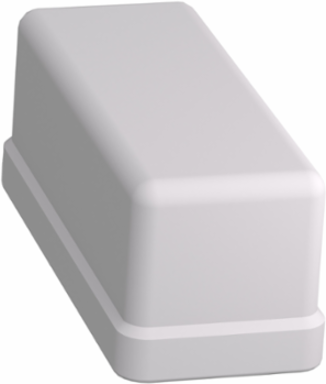

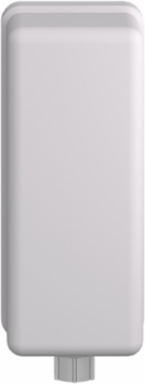

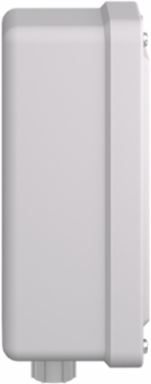

Schneider Electric 9001SKY3 Harmony 9001K Empty Control Station, Plastic, 3 Cut-Outs, 30mm, 0.79 kg

MPN: 9001SKY3
UPC: 785901154099
PPN: SCH-9001SKY3

$273.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This empty enclosure is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It comprises a plastic enclosure with 3 vertical openings diameter 30mm. It is supplied with 1 entry tapped for 3/4'' knockout. This robust control station complies with the requirements of NEMA 1/13/3/4/4X ratings. It weighs 790g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

Important Information Attributes

Range Of Product	Harmony 9001K, Harmony 9001SK
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Cable Entry	1 entry tapped for 3/4'' knockout
Device Short Name	9001SK
Overvoltage Category	II conforming to IEC 61140
Product Destination	for Ø 30 mm control and signalling units
Protective Treatment	TH
Sustainable Packaging	Yes
Pep Code	ENVPEP1210030EN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	3926909989

Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Compatibility Code	9001SK
Material	plastic
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	empty enclosure
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Number Of Cut-out	3 cut-outs
Package Weight(Lbs)	1.016 kg
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Nema Degree Of Protection	NEMA 1, NEMA 12, NEMA 3, NEMA 4, NEMA 4X
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP1210030EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1210030EN
