Schneider Electric 9001KYSS3 Empty Enclosure Control Station, Stainless Steel, 3 Cut-Outs, 30mm

MPN: 9001KYSS3
UPC: 785901017509
PPN: SCH-9001KYSS3

$444.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

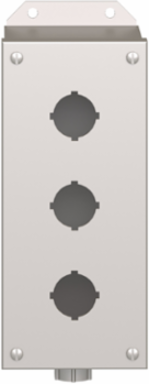

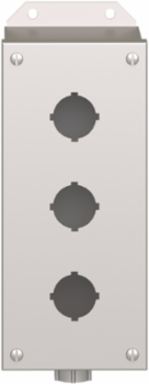

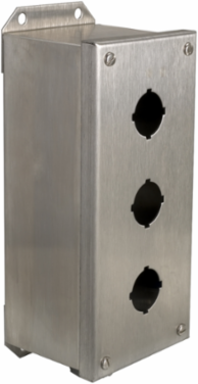

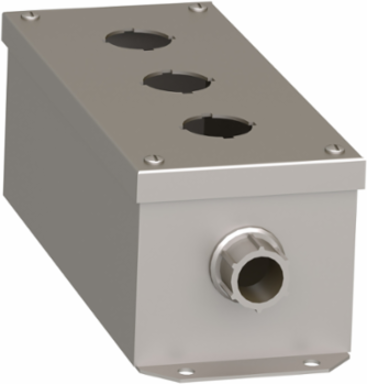

This empty enclosure is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It comprises a stainless steel enclosure with 3 vertical openings diameter 30mm. It is supplied with 1 entry tapped for 3/4'' knockout. This robust control station complies with the requirements of NEMA 1/13/3/4/4X ratings. It weighs 1.715kg. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Range Of Product	Harmony 9001SK, Harmony 9001K
Carbon Footprint Of The End-of-life Phase [C1 To C4]	4 kg CO2 eq., 3.8269814067380903
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	10 kg CO2 eq., 9.506704903216928
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	9001K
Material	stainless steel
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	empty enclosure
Returnability	Yes
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; High voltage; 2020; Mexico, MX
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	49
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	7326908688

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	0.9423095689258161, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.01285578620306449, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Cable Entry	1 entry tapped for 3/4'' knockout
Device Short Name	9001K
Overvoltage Category	II conforming to IEC 61140
Product Destination	for Ø 30 mm control and signalling units
Protective Treatment	TH
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	14 kg CO2 eq.
Pep Code	ENVPEP2503027EN
Pep Verification Date	2025-03-26
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Number Of Cut-out	3 cut-outs
Package Weight(Lbs)	1.742 kg
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Nema Degree Of Protection	NEMA 1, NEMA 12, NEMA 3, NEMA 4, NEMA 4X
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-03-26
Psr Version	PSR-0005-ed3-2023 06 06

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	14.288851665083898
Environmental Disclosure	ENVPEP2503027EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2503027EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
