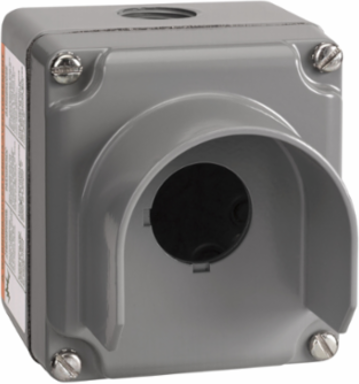

Schneider Electric 9001KYG1 Harmony 9001K Aluminium Empty Enclosure with 1 Cut-Out for 30mm Pushbuttons
- MPN: 9001KYG1
- UPC: 785901589099
- PPN: SCH-9001KYG1
CAD
$225.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This die cast zinc enclosure with one operator opening has an integral guard in the cover. Enclosure has one 0.75 inch conduit opening with 14 NPT thread. A Type K or Type SK operators must be ordered separately. Enclosure is 2.75 inches tall, 3.53 inches wide and 5.26 inches deep. Enclosure weighs 2.65 lbs. This enclosure is rated for NEMA 1, 3, 4, 6, 12 and 13 environments. The enclosure is UL Listed and CSA certified. "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also used in automotive, water and wastewater treatment applications." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Mexico, United States |
|---|
Physical Attributes
| Color Of Cover | grey |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Range Of Product | Harmony 9001K, Harmony 9001SK |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.1745731387 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 9 kg CO2 eq., 9.1172689051 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Compatibility Code | 9001K |
| Material | aluminium |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | empty enclosure |
| Returnability | No |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2503027EN |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC |
| Number Of Cut-out | 1 cut-out |
| Package Weight(Lbs) | 1.348 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1824958248, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.288204438, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Cable Entry | 1 entry tapped for 3/4'' cable gland |
| Device Short Name | 9001K |
| Overvoltage Category | II conforming to IEC 61140 |
| Product Destination | for Ø 30 mm control and signalling units |
| Protective Treatment | TH |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 11 kg CO2 eq. |
| Color Of Cover | grey |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The 9001 K metal 30mm push buttons are automatic self grounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments and it is robust and offers long term reliability in heavy duty industrial applications and extreme environments |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; MX |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC |
| Recyclability Potential In % | 15 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 7616995190 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Nema Degree Of Protection | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6 |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 10.7625423066 |
| Environmental Disclosure | ENVPEP2503027EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2503027EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Range Of Product | Harmony 9001K, Harmony 9001SK |
|---|
| Product Or Component Type | empty enclosure |
|---|
ETIM
| ETIM 8 | EC000200 |
|---|
| ETIM 9 | EC000200 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
