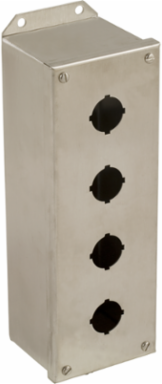

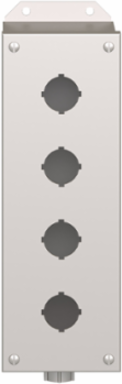

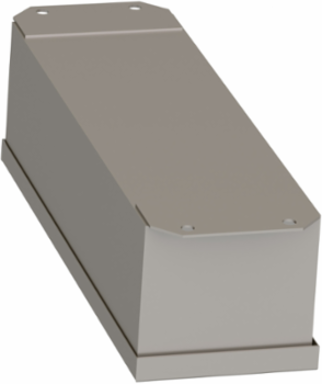

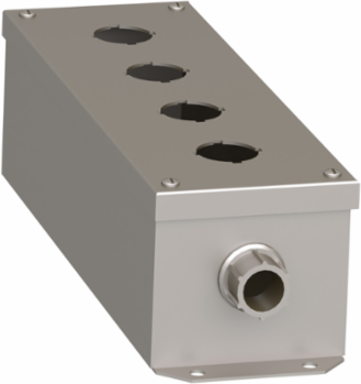

Schneider Electric 9001KYSS4 Harmony 9001K Empty Enclosure Control Station, Stainless Steel, 4 Cut-Outs, 30mm
- MPN: 9001KYSS4
- UPC: 785901017516
- PPN: SCH-9001KYSS4
CAD
$581.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This empty enclosure is impact resistant, dust resistant, water resistant, corrosion resistant and vibration resistant, making it ideal for operation in harsh environments High performance International standards & certifications (Marine ABS certification, Type 3 and 13)
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Mexico, United States |
|---|
Important Information Attributes
| Range Of Product | Harmony 9001K, Harmony 9001SK |
|---|---|
| Local Publishable Date | 2026-04-30 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Cable Entry | 1 entry tapped for 3/4'' knockout |
| Device Short Name | 9001K |
| Overvoltage Category | II conforming to IEC 61140 |
| Product Destination | for Ø 30 mm control and signalling units |
| Protective Treatment | TH |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2503027EN |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 7326908688 |
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Compatibility Code | 9001K |
| Material | stainless steel |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | empty enclosure |
| Returnability | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Number Of Cut-out | 4 cut-outs |
| Package Weight(Lbs) | 2.087 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Nema Degree Of Protection | NEMA 1, NEMA 12, NEMA 3, NEMA 4, NEMA 4X |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503027EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2503027EN |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Range Of Product | Harmony 9001K, Harmony 9001SK |
|---|
| Product Or Component Type | empty enclosure |
|---|
ETIM
| ETIM 8 | EC000200 |
|---|
| ETIM 9 | EC000200 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
