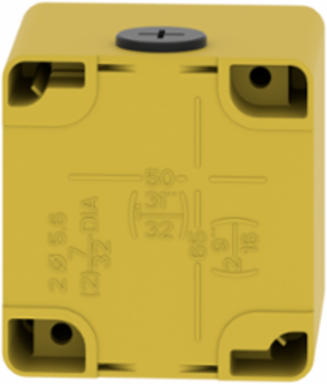

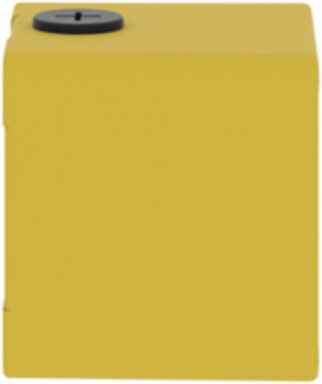

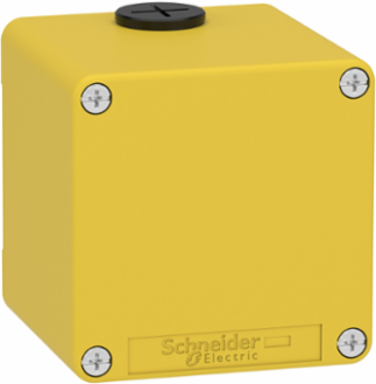

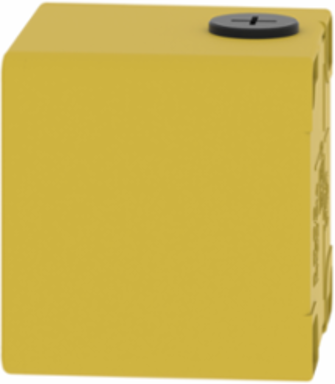

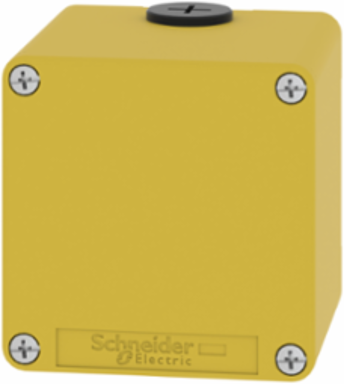

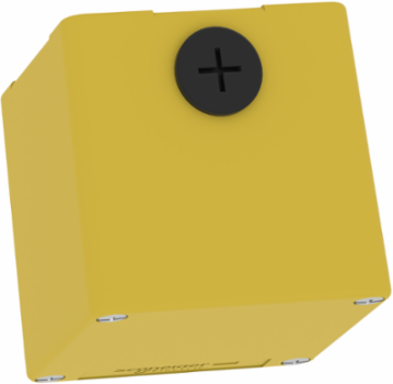

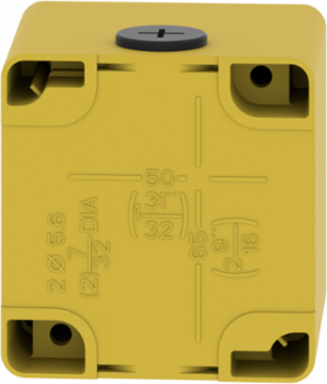

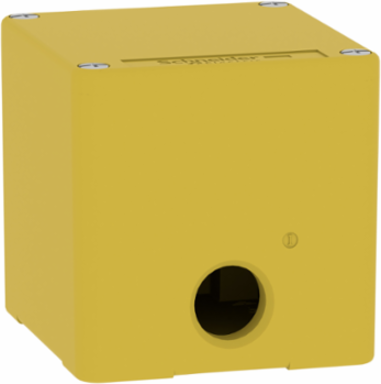

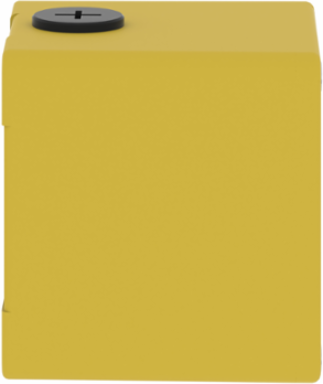

Schneider Electric XAPK14 Empty Control Station, 80x80x77mm, Die Cast Zinc, Yellow RAL 1004, IK07
- MPN: XAPK14
- PPN: SCH-XAPK14
CAD
$118.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Empty Control Station, 80x80x77mm, Die Cast Zinc, Yellow RAL 1004, IK07
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Morocco |
|---|
Physical Attributes

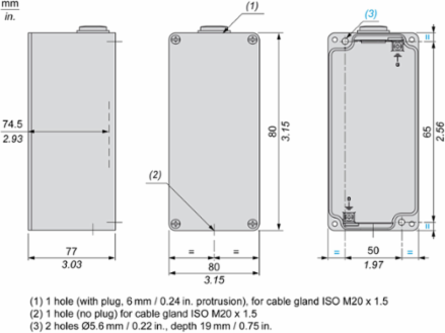

| Cad Overall Depth | 77 mm |
|---|---|
| Cad Overall Width | 80 mm |
| Usable Depth | 74.5 mm |
| Color Of Cover | yellow RAL 1004) |
| Cad Overall Height | 80 mm |
|---|---|
| Product Front Plate Size | 80 x 80 mm |
| Color Of Base Of Enclosure | yellow RAL 1004) |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL, cULus, EAC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.0702889735 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 6 kg CO2 eq., 5.6463985891 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Station Type | metal |
| Electrical Shock Protection Class | class I conforming to IEC 61140 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | die-cast empty control station |
| Range Of Product | Harmony XAP |
| Returnability | Yes |
| Software Version | EIME v5.9.1 |
| Thread Type | M20 x 1.5 |
| Color Of Base Of Enclosure | yellow RAL 1004) |
| Pep Code | ENVPEP2309042EN |
| Pep Verification Date | 2021-12-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; 120V; US |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 7907006000 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1008959295, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0023724804, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2114 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Cable Entry | 2 x cable gland ISO |
| Device Short Name | XAPK |
| Material | die cast zinc |
| Product Destination | for Ø 22 mm control and signalling units |
| Protective Treatment | TC |
| Resistance To Chemical Agents | special treatment can be obtained on request |
| Sale Per Indivisible Quantity | 1 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 6 kg CO2 eq. |
| Color Of Cover | yellow RAL 1004) |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The main function of XAP control station box is to provide complete water tight connection for XB4 and XB5 range products during 20 years with the following dimension is 80mm x 80mm x 51mm with EN/IEC 60529 standard. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: France |
| Energy Model - Use [B6] | Electricity mix; AC; 120V; US |
| Number Of Cut-out | without cut-out |
| Package Weight(Lbs) | 782.0 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP65 EN/IEC 60529 and EN/IEC 60947-5-1, IP66 EN/IEC 60529 and EN/IEC 60947-5-1, IP69 EN/IEC 60529 and EN/IEC 60947-5-1 |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2309042EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2309042EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 5.8199559725 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2021-12-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | die-cast empty control station |
|---|
| Range Of Product | Harmony XAP |
|---|
ETIM
| ETIM 8 | EC000200 |
|---|
| ETIM 9 | EC000200 |
|---|
