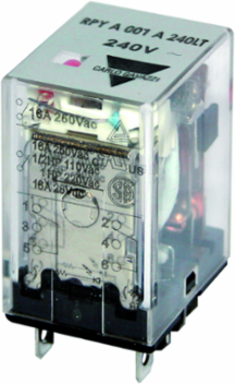

Carlo Gavazzi RPYA001A120L Relay 16A 250VAC/28VDC DPDT 120VAC Coil, 21.5mm Height, 28mm Width, LED Indicator
- MPN: RPYA001A120L
- PPN: CLG-RPYA001A120L
CAD
$19.07
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Relay 16A 250VAC/28VDC DPDT 120VAC Coil, 21.5mm Height, 28mm Width, LED Indicator
Documentation & Downloads
Specifications
Key Specifications
| Type of electric connection | Plug-in connection |
|---|---|
| Nominal current | 16 |
| Rated control supply voltage Us at AC 60HZ | Min.6-Max.380 |
| Drive, polarization | Polarity free |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as change-over contact | 1 |
| Type of switch contact | Simple contact |
| With LED indication | Yes |
| Material of contact insert | Thermoplastic |
| Degree of protection (IP) | IP00 |
| Height | 21.5 |
| With approval according to UL | No |
| Wall mounting/direct mounting | No |
| With detachable clamps | No |
|---|---|
| Rated control supply voltage Us at AC 50HZ | Min.6-Max.380 |
| Voltage type for actuating | AC |
| Drive, switching attitude | Mono stable |
| Number of contacts as normally open contact | 1 |
| With forced-guided contacts | No |
| Complete with socket | No |
| Material of contact surface | Silver |
| Material contact | Beryllium copper |
| Width | 28 |
| Depth | 36 |
| Rail mounting possible | No |
