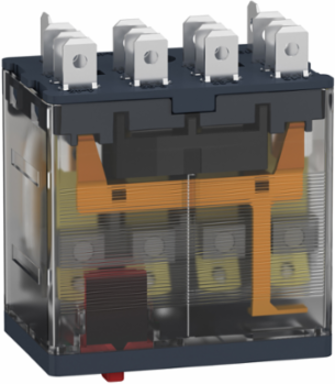

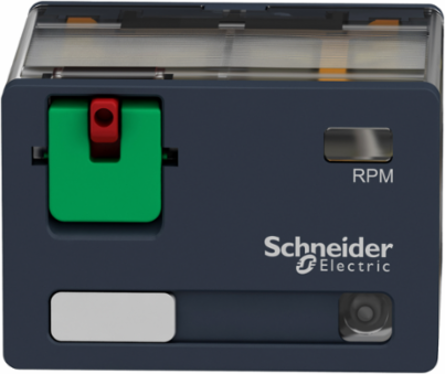

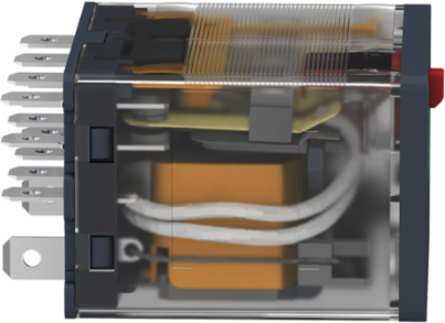

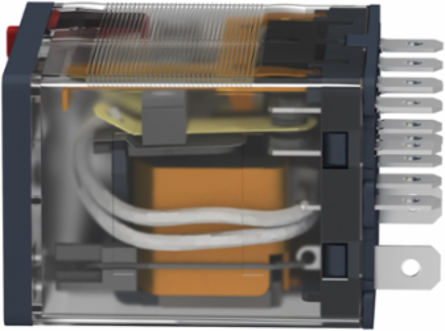

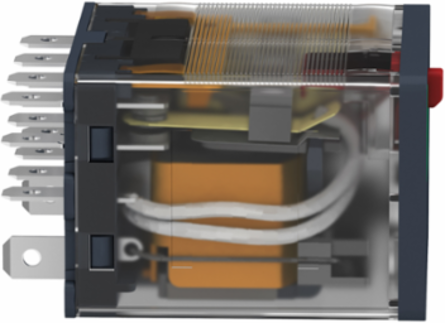

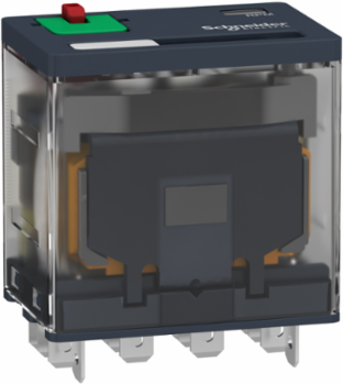

Schneider Electric RPM42F7 Plug-In Relay, Harmony Electromechanical, 15A, 4 C/O, 120V AC, LED Indicator

MPN: RPM42F7
PPN: SCH-RPM42F7

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$36.57

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

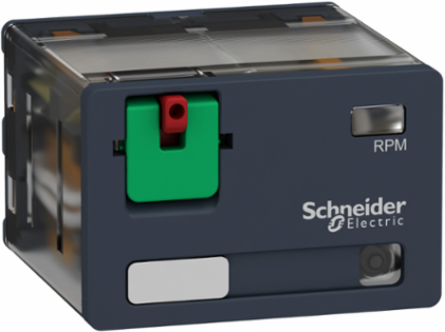

This Harmony RPM power plug-in relay has a coil control voltage of 120V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0

Features

Featuring a Four-Pole Double-Throw (4PDT) arrangement, this power relay allows you to manage four independent electrical circuits with a single command signal. This high-density switching capability is ideal for complex automation sequences, enabling you to synchronize motor starters, signal lights, and safety interlocks while significantly reducing the footprint required in your control cabinet.
Optimized for 120V AC control circuits, this Zelio power relay integrates seamlessly into most North American industrial automation architectures. The reliable electromagnetic coil ensures crisp, repeatable actuation of the contacts, preventing "chatter" and ensuring your automated production lines or HVAC systems respond instantly to PLC or manual switch inputs.
Rated for up to 15 Amps, the RPM42F7 is built to switch substantial power loads that standard miniature relays cannot handle. The silver alloy contacts are designed for high endurance and low electrical resistance, providing a long service life even when frequently cycling heavy inductive loads like solenoid valves, small motors, or large heating elements.

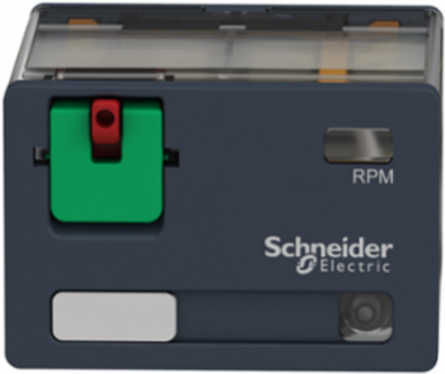

Equipped with a built-in "Green" LED status indicator and a mechanical flag, you can instantly verify coil energization at a glance. The inclusion of a lockable manual test button allows maintenance technicians to force the contacts for circuit testing and troubleshooting during commissioning, dramatically reducing diagnostic time during system failures.

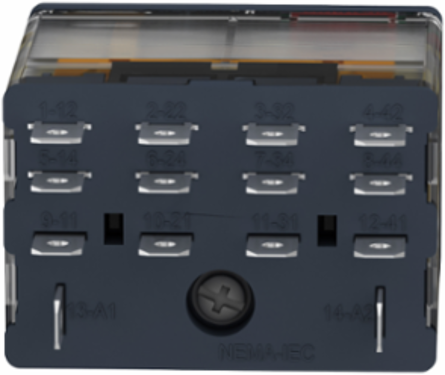

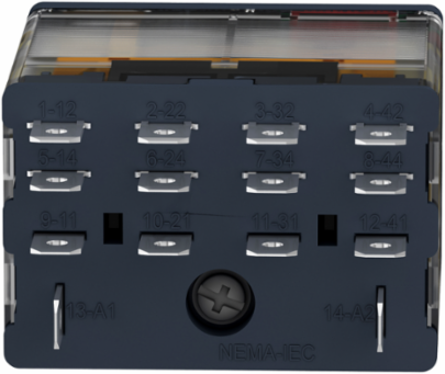

Designed for use with Schneider s RPZ socket system, this relay features a plug-in pin configuration that allows for "hot-swappable" replacements without disconnecting any field wiring. This modular approach minimizes downtime during maintenance cycles and ensures that even non-specialized staff can perform a rapid, error-free swap-out to keep your operations running.

Documentation & Downloads

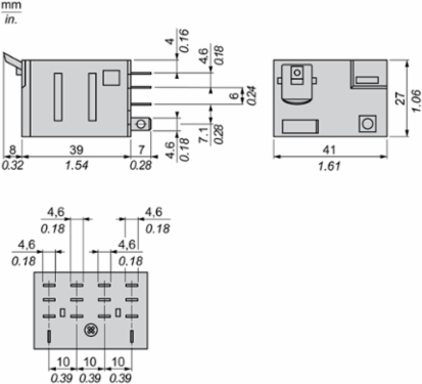

Specifications

Key Specifications

Country of Origin	Brazil, China, France, Singapore, United States

Complementary Attributes

Maximum Switching Capacity	3750 VA, 420 W
Line Rated Current	15 A
Minimum Switching Capacity	170 mW 10 mA, 17 V

Control Circuit Type	AC
Maximum Switching Voltage	250 V IEC
Rated Operational Voltage Limits	96...132 V AC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Type	lockable test button, lockable test button
Operating Rate	<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Contacts Composition	4 C/O
[Ie] Rated Operational Current	15 A 28 V DC) NO IEC7.5 A 28 V DC) NC IEC, 15 A 277 V AC) UL15 A 28 V DC) UL, 15 A 250 V AC) NO IEC7.5 A 250 V AC) NC IEC
[Ui] Rated Insulation Voltage	250 V IEC300 V CSA, 300 V UL
Carbon Footprint Of The Distribution Phase [A4]	0.040106268715611425, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.00017537448677886803
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	35 kg CO2 eq., 35.36891920468102
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Resistance	2100 Ohm at 20 °C +/- 15 %
Contacts Material	AgNi
Electrical Durability	100000 cycles resistive
Mechanical Durability	10000000 cycles
Operating Position	any position
Product Availability	Stock - Normally stocked in distribution facility
Protection Category	RT I
Relay Type	power relay
Returnability	Yes
Series Name	RPM series
Shock Resistance	15 gnin operation30 gnnot operating
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	36 kg CO2 eq.
Vibration Resistance	3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Pep Code	ENVPEP2506026EN
Pep Verification Date	2025-06-30
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
[Ithe] Conventional Enclosed Thermal Current	15 A -40-55 °C
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490075

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Dielectric Strength	1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced2000 V AC between poles with basic
Status Led	with, with
Certificate Agency	UL, EAC, CSA
[Uc] Control Circuit Voltage	AC 50/60 Hz, 120 V
Drop-out Voltage Threshold	>= 0.15 Uc AC, >= 0.15 Uc AC>= 0.15 Uc AC, >= 0.15 Uc AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.12900050089224432, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.8 kg CO2 eq., 0.7708014046727648
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Coil Consumption In Va	2.5 60 Hz
Compatibility Code	RPM
Contacts Type And Composition	4 C/O
Load Current	15 A 250 V AC15 A 28 V DC
Mounting Support	plug-in
Operating Time	20 ms at nominal voltage
Product Or Component Type	plug-in relay
Range Of Product	Harmony Electromechanical Relays
Reset Time	20 ms at nominal voltage
Safety Reliability Data	B10d = 100000
Shape Of Pin	flat (faston type)
Software Version	v6.3.0.1-4
Test Levels	level A group mounting
Utilisation Coefficient	20 %
Control Circuit Voltage	120 V
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; High voltage; 2020; China, CN
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %	67
[Uimp] Rated Impulse Withstand Voltage	4 kV 1.2/50 µs
Package Weight(Lbs)	72.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Ambient Air Temperature For Operation	-40-55 °C-40-55 °C
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2506026EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	36.309002753448425
Environmental Disclosure	ENVPEP2506026EN
Ip Degree Of Protection	IP40 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-06-30
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
