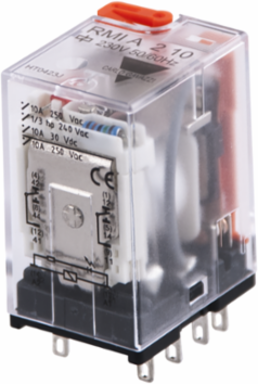

Carlo Gavazzi RMIA210230VAC DPDT Relay 10A 250VAC/30VDC, 230VAC Coil, IP40, 28mm Width, 36mm Depth
- MPN: RMIA210230VAC
- PPN: CLG-RMIA210230VAC
CAD
$23.79
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
DPDT Relay 10A 250VAC/30VDC, 230VAC Coil, IP40, 28mm Width, 36mm Depth
Documentation & Downloads
Specifications
Key Specifications
| Type of electric connection | Plug-in connection |
|---|---|
| Nominal current | 10 |
| Rated control supply voltage Us at AC 60HZ | Min.6-Max.230 |
| Drive, polarization | Polarity free |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as change-over contact | 2 |
| Type of switch contact | Double contact |
| With LED indication | Yes |
| Material of contact insert | Thermoplastic |
| Degree of protection (IP) | IP40 |
| Height | 21.5 |
| With approval according to UL | No |
| Wall mounting/direct mounting | No |
| With detachable clamps | No |
|---|---|
| Rated control supply voltage Us at AC 50HZ | Min.6-Max.230 |
| Voltage type for actuating | AC |
| Drive, switching attitude | Mono stable |
| Number of contacts as normally open contact | 2 |
| With forced-guided contacts | No |
| Complete with socket | No |
| Material of contact surface | Silver |
| Material contact | Beryllium copper |
| Width | 28 |
| Depth | 36 |
| Rail mounting possible | No |
