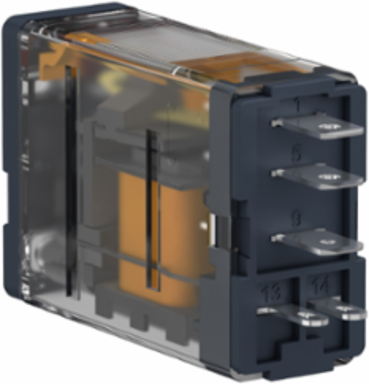

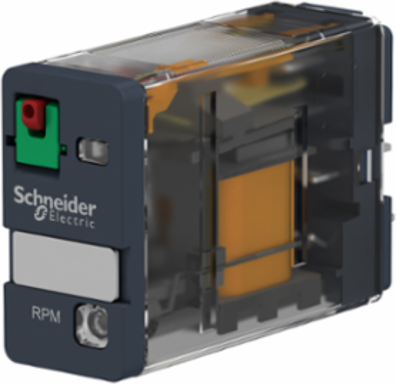

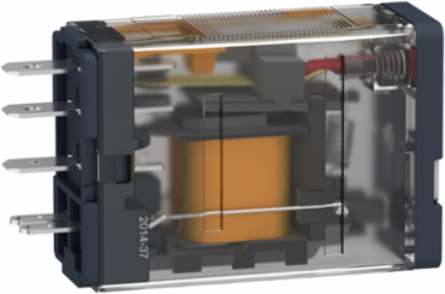

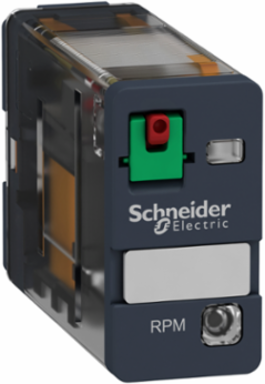

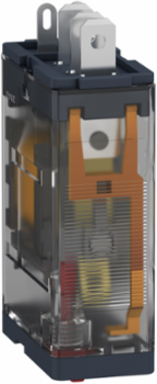

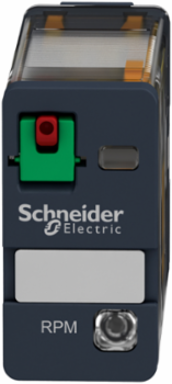

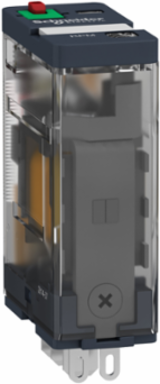

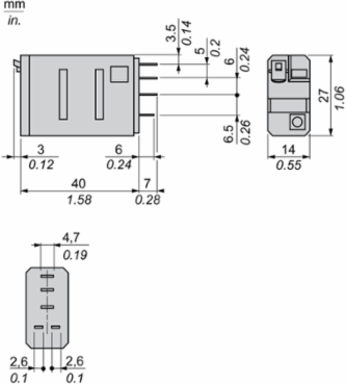

Schneider Electric RPM12B7 Plug-In Relay, 15A, 24V AC, SPDT, LED Indicator, IP40

  • MPN: RPM12B7
  • PPN: SCH-RPM12B7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $13.80

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony RPM power plug-in relay has a coil control voltage of 24V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0

    Features

    • The Schneider Electric RPM12B7 features a 1 C/O contact structure, providing a flexible switching solution for hard-wired logic automated systems. This configuration allows you to effortlessly alternate power between two separate circuits, making it ideal for streamlining complex automation paths and acting as a reliable interface alongside industrial PLCs.
    • Engineered specifically for low-voltage commercial and industrial infrastructure, this power relay operates on a 24V AC (50/60 Hz) control circuit voltage. It mitigates the risk of control-loop matching errors, ensuring seamless integration into existing HVAC, machinery control panels, and process automation lines without requiring auxiliary step-down transformers.
    • Boasting a robust 15A conventional enclosed thermal current rating at 250V AC or 28V DC, this Harmony series relay is built to manage higher electrical currents without premature wear. With a maximum switching capacity of 3750 VA / 420 W, it easily bridges the gap between low-power control signals and high-amperage field devices like small motors, actuators, and heating elements.
    • This plug-in relay is equipped with an integrated status LED indicator and a lockable mechanical test button. The high-visibility LED provides real-time, clear status signaling day or night, while the lock-down door allows technicians to manually force the contacts closed for fast circuit validation and rapid diagnostic testing, reducing operational downtime.
    • Designed with a compact, easily gripped flat-pin (faston-type) layout, this ice cube relay is built for simple socketable mounting. When paired with its compatible mixed-contact screw-clamp socket (such as the RPZF1), it optimizes DIN-rail real estate, simplifies wire routing, and permits tool-free hot-swapping during routine preventative maintenance cycles.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginChina, Singapore, United States

    Complementary Attributes

    Maximum Switching Capacity3750 VA, 420 W
    Line Rated Current15 A
    Minimum Switching Capacity170 mW 10 mA, 17 V
    Control Circuit TypeAC
    Maximum Switching Voltage250 V IEC
    Rated Operational Voltage Limits19.2...26.4 V AC

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Control Typelockable test button, lockable test button
    Operating Rate<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
    Contacts Composition1 C/O
    [Ie] Rated Operational Current15 A 28 V DC) NO IEC7.5 A 28 V DC) NC IEC, 15 A 277 V AC) UL15 A 28 V DC) UL, 15 A 250 V AC) NO IEC7.5 A 250 V AC) NC IEC
    [Ui] Rated Insulation Voltage250 V IEC300 V CSA, 300 V UL
    Carbon Footprint Of The Distribution Phase [A4]0.0032255698, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0000813564
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 kg CO2 eq., 3.2973112114
    Local Publishable Date2026-03-26
    Stocking FlagY
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Resistance177 Ohm at 20 °C +/- 15 %
    Contacts MaterialAgNi
    Electrical Durability100000 cycles resistive
    Mechanical Durability10000000 cycles
    Operating Positionany position
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection CategoryRT I
    Relay Typepower relay
    ReturnabilityYes
    Series NameRPM series
    Shock Resistance15 gnin operation30 gnnot operating
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint4 kg CO2 eq.
    Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    Pep CodeENVPEP2506026EN
    Pep Verification Date2018-05-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Manufacturing [A1-a3]Energy model used: China
    Energy Model - Use [B6]Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Recyclability Potential In %68
    [Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs
    Package Weight(Lbs)25.000 g
    Warranty (In Months)18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Dielectric Strength1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced
    Status Ledwith, with
    Certificate AgencyEAC, CSA, UL
    [Uc] Control Circuit VoltageAC 50/60 Hz, 24 V
    Drop-out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC>= 0.15 Uc AC, >= 0.15 Uc AC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0033524365, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.2392192822
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Coil Consumption In Va1.6 60 Hz
    Compatibility CodeRPM
    Contacts Type And Composition1 C/O
    Load Current15 A 250 V AC15 A 28 V DC
    Mounting Supportplug-in
    Operating Time20 ms at nominal voltage
    Product Or Component Typeplug-in relay
    Range Of ProductHarmony Electromechanical Relays
    Reset Time20 ms at nominal voltage
    Safety Reliability DataB10d = 100000
    Shape Of Pinflat (faston type)
    Software VersionEIME 5.7.0.2
    Test Levelslevel A group mounting
    Utilisation Coefficient20 %
    Control Circuit Voltage24 V
    Database Version2018-03
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
    Functional-unit Unitunité (unit)
    Energy Consumption On Product Lifetime In Kwh6.73
    Energy Model - Installation [A5]Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    [Ithe] Conventional Enclosed Thermal Current15 A -40-55 °C
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536490050

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Ambient Air Temperature For Operation-40-55 °C-40-55 °C
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2506026EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Carbon Footprint3.5431898563
    Environmental DisclosureENVPEP2506026EN
    Ip Degree Of ProtectionIP40 conforming to IEC 60529
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2018-05-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Typeplug-in relay
    Range Of ProductHarmony Electromechanical Relays

    ETIM

    ETIM 8EC001437
    ETIM 9EC001437

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Overview Attributes

    Device Presentationcomplete product
