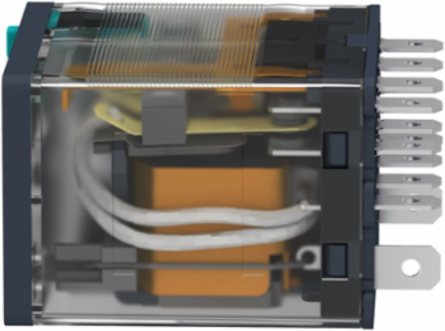

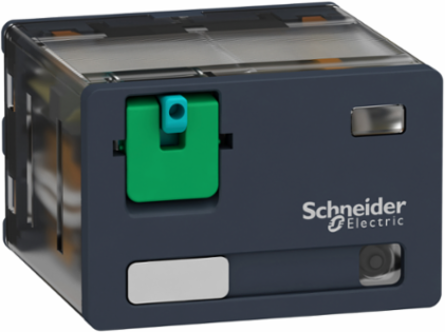

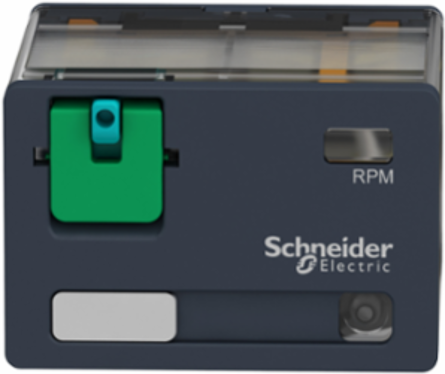

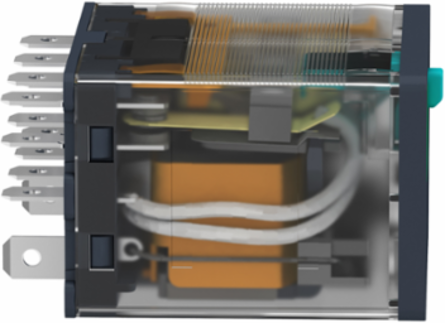

Schneider Electric RPM42BD Harmony Plug-In Relay 15A, 24V DC, 4 C/O, IP40, LED Indicator
- MPN: RPM42BD
- PPN: SCH-RPM42BD
CAD
$33.88
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0
Features
- Featuring four Changeover (Double Throw) contacts rated at 15 Amps, this power plug-in relay allows industrial automation engineers to control four independent electrical paths from a single command signal. This high-density contact arrangement reduces required panel space and simplifies complex interlocking logic circuits within motor control centers and manufacturing machinery.
- Driven by a low-consumption 24V DC coil utilizing a 360-Ohm internal resistance, this relay operates flawlessly within standard industrial control architectures. It provides clean, reliable switching without overloading PLC transistor outputs, maintaining low thermal dissipation to keep your control enclosure running cool and efficiently
- Unlike standard miniature relays, the RPM42BD boasts a robust 15-Amp resistive rating (and exceptional inductive capacity), making it ideal for switching heavy-duty solenoids, small single-phase motors, and commercial lighting arrays. This high threshold minimizes contact wear and prevents contact welding during high-inrush startup periods.
- Outfitted with a physical mechanical flag and an integrated LED indicator, this relay provides instant, dual-layered visual feedback on the state of your system. Operators can confirm coil energization and contact position at a glance, significantly accelerating troubleshooting steps and reducing costly operational downtime in dark or busy factory environments..
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Singapore, United States
Complementary Attributes
- Maximum Switching Capacity
- 3750 VA, 420 W
- Line Rated Current
- 15 A
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Control Circuit TypeDC
Maximum Switching Voltage250 V IEC
Rated Operational Voltage Limits19.2...26.4 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- lockable test button, lockable test button
- Load Current
- 15 A 250 V AC, 15 A 28 V DC
- Shock Resistance
- 15 gnin operation, 30 gnnot operating
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Certificate Agency
- EAC, CSA, UL
- [Uc] Control Circuit Voltage
- 24 V DC, 24 V
- Drop-out Voltage Threshold
- >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.1 Uc DC, >= 0.1 Uc DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.12900050089224432, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.8 kg CO2 eq., 0.7708014046727648
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 14.02
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Coil Consumption
- 1.6 W
- Compatibility Code
- RPM
- Contacts Type And Composition
- 4 C/O
- Mechanical Durability
- 10000000 cycles
- Operating Position
- any position
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Category
- RT I
- Relay Type
- power relay
- Returnability
- Yes
- Series Name
- RPM series
- Software Version
- v6.3.0.1-4
- Test Levels
- level A group mounting
- Utilisation Coefficient
- 20 %
- Pep Code
- ENVPEP2506026EN
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ithe] Conventional Enclosed Thermal Current
- 15 A -40-55 °C
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced, 2000 V AC between poles with basic
Operating Rate<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Status Ledwith, with
Contacts Composition4 C/O
[Ie] Rated Operational Current15 A 28 V DC) NO IEC, 7.5 A 28 V DC) NC IEC15 A 277 V AC) UL, 15 A 28 V DC) UL, 15 A 250 V AC) NO IEC, 7.5 A 250 V AC) NC IEC
[Ui] Rated Insulation Voltage250 V IEC, 300 V CSA, 300 V UL
Carbon Footprint Of The Distribution Phase [A4]0.040106268715611425, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.00017537448677886803
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]25 kg CO2 eq., 25.24343279810491
Local Publishable Date2026-03-26
Future Imap12.57
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance303 Ohm at 20 °C +/- 10 %
Contacts MaterialAgNi
Electrical Durability100000 cycles resistive
Mounting Supportplug-in
Operating Time20 ms at nominal voltage
Product Or Component Typeplug-in relay
Range Of ProductHarmony Electromechanical Relays
Reset Time20 ms at nominal voltage
Safety Reliability DataB10d = 100000

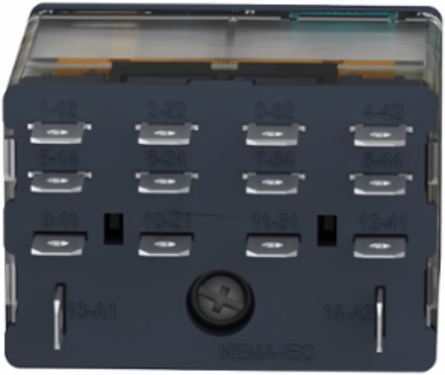

Shape Of Pinflat (faston type)
Sustainable PackagingYes
Total Lifecycle Carbon Footprint26 kg CO2 eq.
Control Circuit Voltage24 V
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential, In %67
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs
Package Weight(Lbs)72.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- -40-55 °C-40-55 °C
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506026EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint26.183516346872306
Environmental DisclosureENVPEP2506026EN
Ip Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
