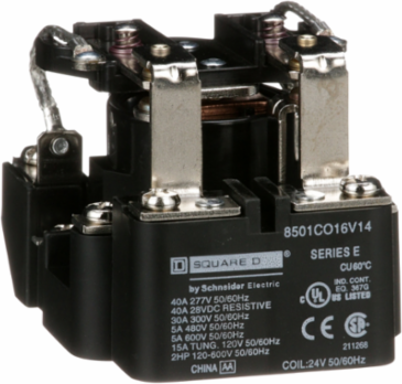

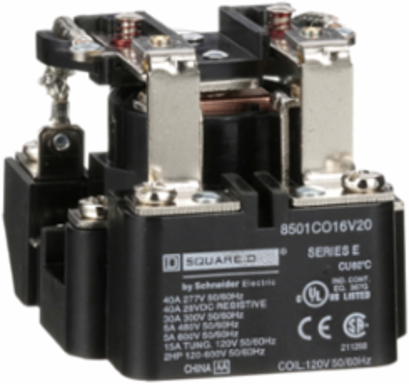

Square D 8501CO16V14 Power Relay, Type C, 2 hp, 30A, DPDT, 24V AC Coil
- MPN: 8501CO16V14
- UPC: 785901052128
- PPN: SCH-8501CO16V14
CAD
$108.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPDT contact configuration with two normally open and two normally closed contact. A variety of coil voltages are available. This relay has a 24 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
Features
- Rated for 2 hp and 30A resistive loads at 300VAC, the 8501CO16V14 is specifically engineered for high-demand industrial applications. This robust power rating allows you to safely switch heavy-duty compressors, pumps, and heating elements, providing a reliable alternative to lighter-duty relays that fail under high inductive inrush currents.
- Featuring a Double Pole Double Throw (DPDT) arrangement with 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, this relay offers maximum wiring flexibility. This "Type C" design enables you to toggle between two separate power paths or fail-safe circuits, simplifying complex control logic and reducing the number of components needed in your electrical panel.
- Designed with a standard 24VAC coil, this relay integrates seamlessly into most HVAC and industrial automation control loops. This low-voltage control signal enhances operator safety at the panel interface while effectively switching high-voltage line power, making it an ideal choice for building management systems and machine tool controls.
- Part of the legendary Schneider Electric / Square D 8501C series, this relay features an open-frame construction that facilitates superior heat dissipation. This physical design ensures a long mechanical life cycle and consistent performance in harsh environments where enclosed relays might overheat or fail prematurely.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States, ZZ

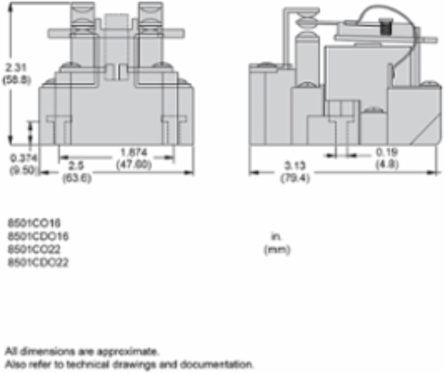

Depth2.31 in
Complementary Attributes
- Line Rated Current
- 30 A
- Rated Power In Hp
- 2.0 hp
Maximum Switching Voltage600 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL listed file E78351 CCN NLDX, CSA, CE
- Local Publishable Date
- 2026-03-25
- Future Imap
- 73.78
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Catalog Class
- 8501
- Device Application
- suited for controlling small single phase motors and other light loads
- Mounting Support
- panel mounting
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Power Relay 8501C
- Sustainable Packaging
- No
- Tightening Torque
- 11-15 lbf.in
- Height Nominal
- 3.12 in
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz
- Hold-in Power Consumption In Va
- 10-10 VA
- Package Weight(Lbs)
- 276.691 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Future Msrp82.34
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1918
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg GaugeAWG 10 copper

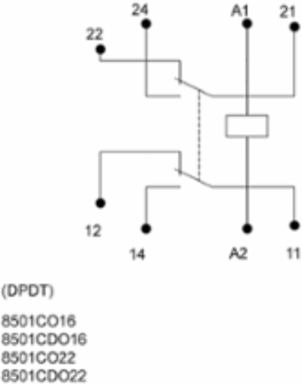

Contacts Type And Composition2 NO/2 NC
Device Short Nametype C
Phase1 phase
Product Or Component Typepower relay
ReturnabilityYes
Switch FunctionDPDT
Pep CodeENVPEP1705008EN
Width Nominal2.5 in
Connections - Terminalsscrew clamp terminal
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -22-122 °F, -22-122 °F
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Environmental DisclosureENVPEP1705008EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1705008EN
General Attributes
- Phase
- 1 phase
- Range Of Product
- Power Relay 8501C
Product Or Component Typepower relay
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
