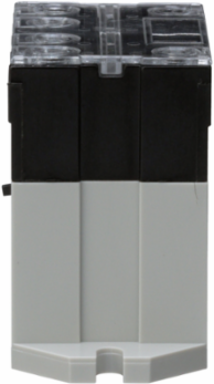

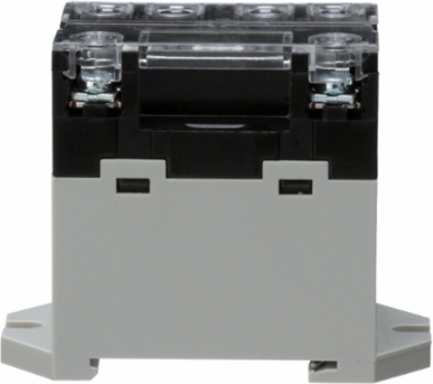

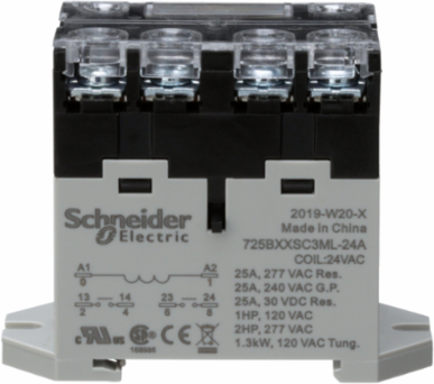

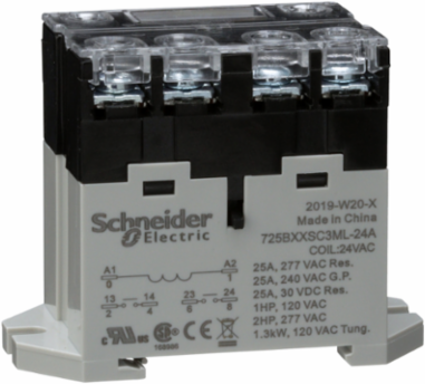

Schneider Electric 725BXXSC3ML-24A Power relay, SE Relays, 25A, 2NO, 24VAC, LED push button, screw terminals, DIN or panel mount
- MPN: 725BXXSC3ML-24A
- PPN: SCH-725BXXSC3ML-24A
CAD
$57.26
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This 725 power relay belongs to the Schneider Electric Harmony electromechanical relays range. 725 power relay has a LED status indicator with screw terminals supporting DIN rail or Panel mounting. It’s a 25A 2 NO contact configuration mechanical relay with nominal coil voltage of 24Vac and coil resistance of 275Ω. The touch-proof covers on screw terminals provides IP20 degree of protection. It has a side-mounted spring return pushbutton for testing the contacts. It weighs 0.120Kg. It is suitable for high-capacity switching applications such as EV charging, CNC machines, and HVAC compressors. Protection modules and spring clips are available. It is sold in lots of 10. The 725 relay range with high dielectric strength helps withstand severe voltage surges and spikes which provides protection for surrounding circuits.
Features
- This Harmony series electromechanical relay features a nominal 24V AC coil (50/60 Hz) with a 275-ohm coil resistance, designed to integrate seamlessly into low-voltage control loops and industrial automation panels. It activates safely within a threshold of 20.4 to 26.4 V AC, ensuring predictable performance during minor control circuit voltage drops.
- Equipped with an integrated LED status indicator and a side-mounted, lockable mechanical test button, this relay simplifies field diagnostics and system commissioning. Electricians can perform instant manual overrides to test contact states during routine maintenance, while the bright LED offers quick visual validation of live coil status.
- To accommodate cramped layout specifications, the flat-pack housing features dual-mounting support for both standard 35mm DIN rail and direct panel installation. Weighing just 120 grams and measuring 1.4 inches wide, it optimizes precious control enclosure space while reducing installation time across varied control layouts.
- Built with touch-proof screw terminals providing IP20 finger protection, this relay prioritizes maintenance safety while delivering a high dielectric strength of 4000V AC between the coil and silver-alloy contacts. This high isolation protects surrounding microelectronics from transient voltage spikes, contributing to a robust mechanical lifespan of up to 5,000,000 operations.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States

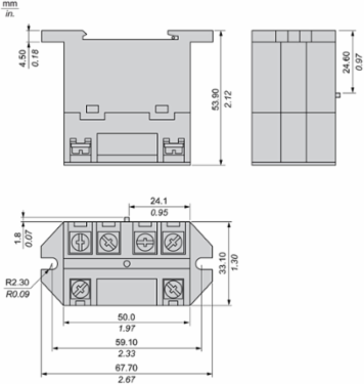

Depth53.9 mm
Physical Attributes
- Wire Stripping Length
- 8 mm
Complementary Attributes
- Control Circuit Type
- AC
- Maximum Resistance
- 275 Ohm
- Minimum Switching Current
- 100 mA 5 V DC
- Rated Power In W
- 1.3 kW 120 V tungsten
Line Rated Current25 A
Maximum Switching Voltage240 V CE277 V UL
Rated Power In Hp1 hp 120 V AC2 hp 277 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- DIN rail, panel
- Contacts Composition
- 2 NO
- Certificate Agency
- UL, CSA, CE
- [Uc] Control Circuit Voltage
- AC, 24 V
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Coil Consumption
- 2.50 VA
- Catalog Class
- 725
- Contacts Type And Composition
- 2 NO
- Dielectric Strength
- 4000 V AC between coil and contact2000 V AC between poles
- Local Signalling
- LED indicator test button
- Network Frequency
- 50/60 Hz
- Product Or Component Type
- DIN rail/panel mount relay
- Relay Type
- power relay
- Returnability
- Yes
- Shape Of Pin
- screw
- Sustainable Packaging
- No
- Height Nominal
- 67.7 mm
- [Ithe] Conventional Enclosed Thermal Current
- 25 A
- Short-circuit Current
- 3 kA
- Package Weight(Lbs)
- 120.0 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Tightening Torque10.6...15 lb.in, 1.2...1.7 N.m
Control Circuit Voltage24 V
[Ie] Rated Operational Current25 A at 277 V AC (on resistive load) conforming to UL25 A at 240 V AC (general purpose) conforming to UL25 A at 30 V DC (on resistive load) conforming to UL, 25 A at 240 V AC (on resistive load) conforming to IEC, 25 A at 28 V DC (on resistive load) conforming to IEC
Connections - Terminalsscrew, screw 1 x 4 mm² coil terminalscrew 1 x 6 mm² contact terminal
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Associated Fuse Rating32 A gG at 400 V coordination type 2 for power circuit
Average Impedance2 mOhm
Contacts Materialsilver alloy contacts
Control Typetest button
Electrical Durability100000 cycles resistive IEC
Mechanical Durability5000000 cycles
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Electromechanical Relays
Response Time30 ms
Series Name725 series
Status Ledwith
Control Circuit Type2AC
Width Nominal34.9 mm
Drop-out Voltage ThresholdAC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410050
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-55 °C, -20-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Ambient Air Temperature For Storage-55-100 °C, -55-100 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- DIN rail/panel mount relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC002057
ETIM 9EC002057
Input Attributes
- Input Voltage
- 20.4...26.4 V AC 50/60 Hz
