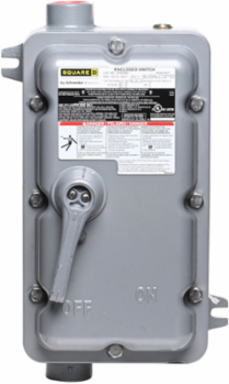

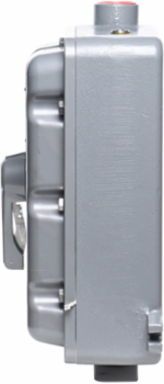

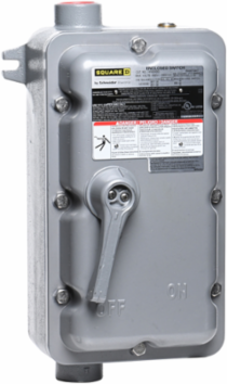

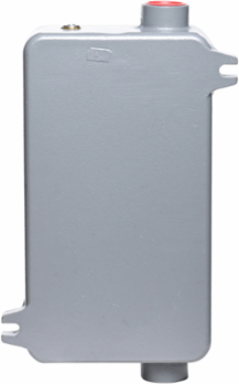

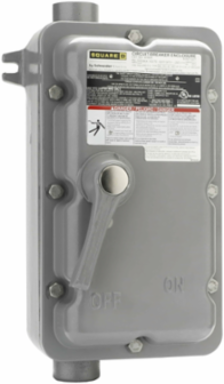

Square D H100XBD PowerPacT B Circuit Breaker Enclosure, 15A-100A, NEMA 7/9, Cast Aluminum
- MPN: H100XBD
- UPC: 785901284895
- PPN: SCH-H100XBD
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Industrial and residential Square D automatic switch enclosures are designed to be tough, reliable and provide exceptional performance in the most grueling conditions. These enclosures provide a deadfront housing for PowerPact B molded case automatic switches to prevent personnel from accidentally contacting energized parts. These enclosures are NEMA Type 7/9 for hazardous environments. This enclosure houses a BDL36000S12 factory installed molded case automatic switch. The enclosure complies with UL and CSA requirements.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth184.2 mm
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1408006EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Nema Degree Of ProtectionNEMA 7/9
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1408006EN
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL Listed, CSA
- Local Publishable Date
- 2026-03-17
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2014
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Enclosure Material
- Cast Aluminium
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 408.0 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 10.637 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Product Destinationautomatic switch B 15-100 A
Sustainable PackagingNo
Pep CodeENVPEP1408006EN
Width Nominal245.1 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
