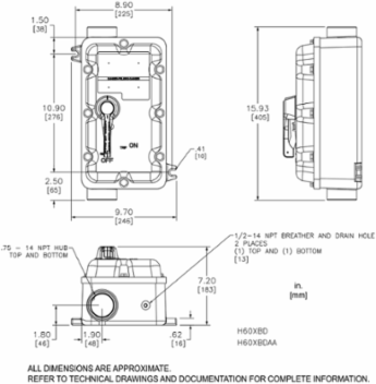

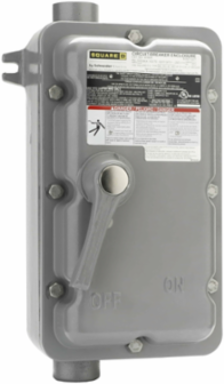

Square D H60XBD PowerPacT B Molded Case Switch Enclosure, 15A-60A, NEMA 7/9, Cast Aluminum, Surface Mount
- MPN: H60XBD
- UPC: 785901284932
- PPN: SCH-H60XBD
- UNSPSC: 39121318
CAD
$4775.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Industrial and residential Square D automatic switch enclosures are designed to be tough, reliable and provide exceptional performance in the most grueling conditions. These enclosures provide a deadfront housing for PowerPact B molded case automatic switches to prevent personnel from accidentally contacting energized parts. These enclosures are NEMA Type 7/9 for hazardous environments. This enclosure houses a BDL36000S12 factory installed molded case automatic switch. The enclosure complies with UL and CSA requirements.
Features
- Available in 2 or 3 pole design
- NEMA Type 7/9 (cast aluminum) enclosure for hazardous environments
- Available for circuit breakers or with factory installed automatic switches
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 184.2 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL Listed, CSA |
| Local Publishable Date | 2026-08-25 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1904 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Enclosure Material | Cast Aluminium |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 245.1 mm |
| Customs Code | 8536200020 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Destination | automatic switch B 15-60 A |
| Sustainable Packaging | No |
| Height Nominal | 395.2 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP2305006EN |
| Nema Degree Of Protection | NEMA 7/9 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2305006EN |
