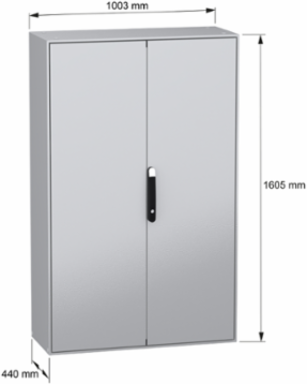

Schneider Electric NSYSM1610402D Spacial SM Compact Enclosure 1600x1000x400 mm, IP55, 2 Doors
Schneider Electric NSYSM1610402D Spacial SM Compact Enclosure 1600x1000x400 mm, IP55, 2 Doors
- MPN: NSYSM1610402D
- PPN: SCH-NSYSM1610402D
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2652.46/ EA
Description

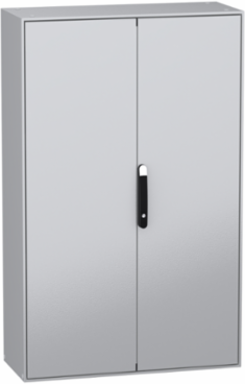

Spacial SM monobloc compact steel enclosure with 2 plain front doors. 1600 x 1000 x 400 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.
Specifications
Physical Attributes
- Color
- enclosure Gray RAL 7035), handle Black RAL 9005)
- Enclosure Nominal Width
- 1000 mm
Enclosure Nominal Height1600 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Body Type
- single piece body with welded rear panel, front part forming a rigid frame with welded corners
- Door Opening Side
- left 120 °), right 120 °)
- Removable Parts
- door by screws hinge, mounting plate bracket by screws
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 231 kg CO2 eq., 230.91906666063755
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 211 kg CO2 eq., 210.6141143714146
- Certificate Agency
- UL, BV, DNV
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1912
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Cable Entry
- 1 entry
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Mounting Plate Description
- without mounting plate
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- compact enclosure
- Returnability
- No
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 642 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional Unit Unit
- Unit
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; Spain, ES
- Energy Model Use B6 2
- Electricity origin
- Recyclability Potential In 2
- 89
- Pn
- 1
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 body, 2 door, 1 cable gland plate, 1 locking system with handle door, 1 blocking system left door, 4 mounting plate bracket
Materialbody sheet steel, door sheet steel, hinge zamak
Carbon Footprint Of The Distribution Phase A4186.29047206689984, 186 kg CO2 eq.
Carbon Footprint Of The Installation Phase A514.379623026623545, 14 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
CoverageCore product
Door TypeSolid
Lock Type4 points lock, handle with 5 mm double bar insert
Number Of Doorsfront 2
Product NamePanelSeT SM
RangePanelSeT
Software Versionv6.2.2
Sustainable PackagingNo
Type Of Gland Platestandard
Pep CodeENVPEP2501030_V1
Pep Verification Date2025-02-10
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Quantity1
Reference Lifetime In Y220
Energy Model Installation A5 2Electricity origin
Energy Model End Of Life C1 C4 2Electricity origin
Offer Owner Code190789
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 642.2032761255755
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-02-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2501030_V1
Ip Degree Of ProtectionIP55 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2501030_V1
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Spain
