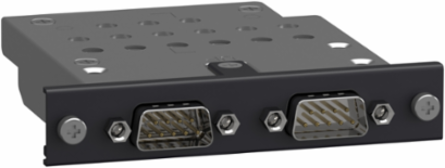

Schneider Electric HMIYP6MPR23P2 Harmony P6 Serial Line Interface Module with 2 x D-Sub 9pin RS232C
- MPN: HMIYP6MPR23P2
- PPN: SCH-HMIYP6MPR23P2
CAD
$580.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This is a dedicated inteface module used with Box PCs of Schneider Electric's Harmony P6 range. HMIYP6MPR23P2 is an isolated 2x RS-232C interface with 2x D-Sub 9 pin plug connector. It weighs 0.30Kg. They are compatible with all Harmony P6 Advanced and Standard Box PCs. Harmony P6 PC's smart design and engineering shortens implementation time for automation engineers and is more economical throughout the life cycle with optimized design and ease of maintenance. Harmony P6 industiral PCs caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Complementary Attributes
- Integrated Connection Type
- Mini PCIe full-size 2 male SUB-D 9 RS232C 2400...115200 bps
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- N
- Serviceability
- No
- Weee Applicability
- Component
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony P6
- Sustainable Packaging
- No
- Accessory / Separate Part Category
- connection accessory
- F-gas Free
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 200.0 g
- Take-back
- No
- Customs Code
- 8471607000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Local Publishable Date2026-01-12
Stocking FlagY
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Product Or Component Typeserial line interface
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Accessory / Separate Part DestinationHarmony P6
F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)24
Environment Attributes Main
- Ambient Air Temperature For Storage
- -30-70 °C, -30-70 °C
- Halogene Performance
- Product contains halogen above thresholds
- China Rohs Regulation
- X
- Silicon Free
- No
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-55 °C
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % non-condensing
General Attributes
- Product Or Component Type
- serial line interface
Range Of ProductHarmony P6
ETIM
- ETIM 8
- EC002584
ETIM 9EC002584
Contractual Warranty Attributes
- Warranty Period
- 24 months
Warranty24 months
