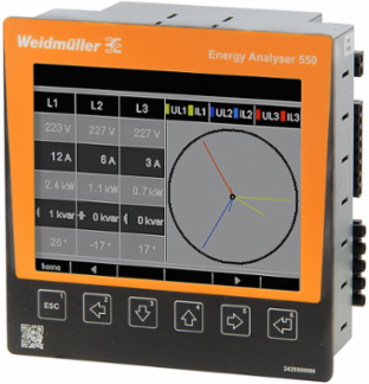

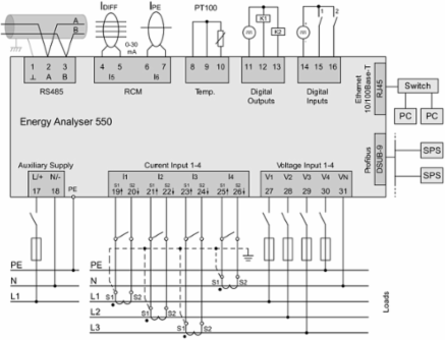

Weidmuller 2425500000 ENERGY ANALYSER 550
- MPN: 2425500000
- PPN: WDM-2425500000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ENERGY ANALYSER 550
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CULUS |
|---|---|
| UL File Number Search | E469563 |
| ROHS | Conform |
|---|
Communication
| Interface | RS485: 9.6 – 921.6 kbps, Profibus DP, Ethernet, Web server/e-mail |
|---|
| Protocol | Modbus RTU, Modbus-Gateway, Modbus TCP/IP, Modbus RTU over Ethernet, SNMP, Profibus DP V0, BACnet (optional) |
|---|
Dimensions And Weights
| Width | 144 mm |
|---|---|
| Height | 144 mm |
| Depth | 81 mm |
| Net weight | 1,080 g |
| Width (inches) | 5.669 inch |
|---|---|
| Height (inches) | 5.669 inch |
| Depth (inches) | 3.189 inch |
Measurement Data Recording
| Memory; minimum and maximum values | Yes |
|---|---|
| Number of memory values | 10,000 k |
| Min. memory recording interval | 1 s |
| Integrated logic | Yes |
| Memory size | 256 MB |
|---|---|
| Update interval register | 200 ms |
| Software | ecoExplorer go® |
Voltage Quality Measurement
| Harmonics, per order / voltage | 1.-63. |
|---|---|
| Distortion factor THD-U in % | Yes |
| Unbalanced | Yes |
| Brief interruptions | Yes |
| Harmonics, per order / current | 1.-63. |
|---|---|
| Distortion factor THD-I in % | Yes |
| Positive, negative and zero system | Yes |
| Sequence-of-events recorder function | Yes |
Measuring Current Input
| Current-measuring channels | 4 + 2 |
|---|---|
| Harmonics, per order / current | 1.-63. |
| Rated current | 1 / 5 A |
| Distortion factor THD-I in % | Yes |
|---|---|
| Measuring accuracy for current | 0.2 % |
| Residual current measuring | Yes |
Inputs/Outputs
| Number of digital inputs | 2 |
|---|---|
| Number of pulse outputs | 2 |
| Number of digital outputs | 2 |
|---|---|
| Temperature input | Yes |
Classifications
| ETIM 6.0 | EC002301 |
|---|---|
| eClass 9.0 | 27-14-23-30 |
| eClass 10.0 | 27-14-23-30 |
| ETIM 7.0 | EC002301 |
|---|---|
| eClass 9.1 | 27-21-03-01 |
| UNSPSC | 39-12-15-35 |
Measuring Voltage Input
| Distortion factor THD-U in % | Yes |
|---|---|
| Harmonics, per order / voltage | 1.-63. |
| Measurement range, voltage L-N, AC | 417 V |
| Quadrants | 4 |
| Four-wire system | Yes |
|---|---|
| Measurement range, voltage L-L, AC | 720 V |
| Measuring accuracy for voltage | 0.1 % |
| Three-wire system | Yes |
Technical Data
| Standards | DIN EN 61326-1, DIN EN 61000-4-2, DIN EN 61000-4-3, DIN EN 61000-4-4, DIN EN 61000-4-5, DIN EN 61000-4-6, EN 61000-4-11, EN 55011, IEC 61010-1, IEC 61010-2-030, DIN EN 61000-4-8 |
|---|---|
| Measurement range, voltage L-L, AC | 720 V |
| Voltage supply | 95 - 240 V AC, 80 - 300 V DC |
| Four-wire system | Yes |
| Sampling frequency 50/60 Hz | 20 kHz |
| Effective value from the period (50/60 Hz) | 10 / 12 |
| Residual current measuring | Yes |
| Measuring accuracy for current | 0.2 % |
| Operating-hours counter | Yes |
| Current-measuring channels | 4 + 2 |
| Bimetal function | Yes |
| Measurement range, voltage L-N, AC | 417 V |
|---|---|
| Surge voltage category | 600 V CAT III |
| Three-wire system | Yes |
| Quadrants | 4 |
| Continuous measurements | Yes |
| Measurement result per second | 5 |
| Measuring accuracy for voltage | 0.1 % |
| Measurement accuracy for active energy (kWh, …/5 A) | Class 0.2S |
| Weekly time switch | Yes |
| Clock | Yes |
Insulation Coordination
| Surge voltage category | 600 V CAT III |
|---|
Temperatures
| Humidity at operating temperature | 5…75 % RH |
|---|---|
| Operating temperature, max. | 55 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature | -10 °C...55 °C |
| Humidity at storage temperature | 5…95 % RH |
|---|---|
| Operating temperature, min. | -10 °C |
| Storage temperature, min. | -25 °C |
| Storage temperature | -25 °C...70 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E469563 |
|---|
