PowerLogic PM5580 Energy Meter, 96mm LCD, Class 0.2S Accuracy, 24V DC
Schneider Electric

Schneider Electric METSEPM5580 PowerLogic PM5580 Energy Meter, 96mm LCD, Class 0.2S Accuracy, 24V DC

  • MPN: METSEPM5580
  • PPN: SCH-METSEPM5580

CAD

$2309.74

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

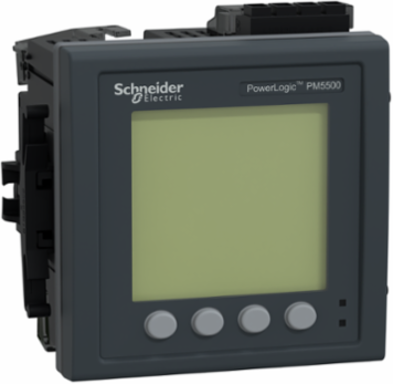

PowerLogic PM5580 Energy Meter, 96mm LCD, Class 0.2S Accuracy, 24V DC

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
India, United States
Depth72 mm

Communications & Management Attributes

Communication Port Protocol
Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V, JBUSModbus TCP/IP 10/100 Mbit/s 2500 V, Ethernet Modbus TCP/IP daisy chain, BACnet IP, DNP3 over ethernet
Communication Gateway
Ethernet/serial
Communication Port SupportRS485, ETHERNET

Complementary Attributes

Line Rated Current
1 A, 5 A
Maximum Power Consumption In Va16 VA 480 V

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB, SI
Market Segmentation Id
RESIDENTIAL, COMMERCIAL, INDUSTRIAL
Data Recording
event logs, maintenance logs, min/max of instantaneous values, data logs, alarm logs, time stamping
Electromagnetic Compatibility
limits for harmonic current emissions class A conforming to IEC 61000-3-2, conducted RF disturbances level 3 conforming to IEC 61000-4-6, magnetic field at power frequency level 4 conforming to IEC 61000-4-8, conducted and radiated emissions class B conforming to EN 55022limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3, electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4surge immunity test level 4 conforming to IEC 61000-4-5voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Market Segment
buildings medium building cost management: billing: sub feederbuildings large building cost management: billing: sub feederbuildings multi-site cost management: billing: sub feederdata center cost management: billing: sub feederhealthcare cost management: billing: sub feederindustry cost management: billing: sub feederbuildings small building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feederdata center cost management: cost allocation: main incomerdata center cost management: cost allocation: sub feederhealthcare cost management: cost allocation: main incomerhealthcare cost management: cost allocation: sub feederindustry cost management: cost allocation: main incomerindustry cost management: cost allocation: sub feederbuildings small building network management: sub feederbuildings medium building network management: main incomerbuildings medium building network management: sub feederbuildings large building network management: sub feederbuildings multi-site network management: sub feeder, data center network management: sub feeder, healthcare network management: sub feeder, industry network management: sub feederbuildings small building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings large building cost management: billing: main incomer, buildings multi-site cost management: billing: main incomer, data center cost management: billing: main incomer, healthcare cost management: billing: main incomer, industry cost management: billing: main incomer, buildings small building cost management: cost allocation: main incomer, buildings small building network management: main incomer
Measurement Voltage
20-400 V AC 45...65 Hz between phase and neutral, 20-828 V AC 45...65 Hz between phases
Network Frequency
60 Hz, 50 Hz
Type Of Measurement
current, voltage, frequency, power factor, energy, active and reactive power
Connections - Terminals
voltage circuit screw terminal block4control circuit screw terminal block2current transformer screw terminal block6, RS485 link screw terminal block4digital input screw terminal block8, digital output screw terminal block4Ethernet network RJ45 connector2
Carbon Footprint Of The Distribution Phase [A4]
0.065027, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.0095935, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
398 kg CO2 eq., 398.04
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Serviceability
Yes
Field Service Division
DPIBS
Use Carbon Footprint
398.04
Weee Product Category
4
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
7
Without Single Use Plastic
No
Dangerous Goods Code
LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier
3
Function Option
Standard
Compatibility Code
PM5580
Display Resolution
128 x 128 pixels
Energy Efficiency Optimized
False
Information Displayed
tariff 8)
Memory Capacity
1.1 MB
Mounting Support
framework
Product Availability
Stock - Normally stocked in distribution facility
Product Or Component Type
power meter
Returnability
Yes
Software Version
EIME v5.8.1
Total Lifecycle Carbon Footprint
478 kg CO2 eq.
Pep Code
ENVPEP1909005EN
Pep Verification Date
2020-01-01
Type Of Verification For The Pep
Independent external review
Functional-unit Description
The main function of the PowerLogic PM5580 Panel-mount Cl0.2 Power Meter is for measurement of 3-phase energy (import & export), Power (active, reactive, apparent), Voltage and Current, THD, Frequency, PF and other power measurement and display power consumption for 10 years
Functional-unit Unit
Unit
Energy Consumption On Product Lifetime In Kwh
438
Energy Model - Installation [A5]
Electricity mix; AC; 120V; US / Electricity mix; AC; 220V; CN / Electricity mix; AC; 220V; CN
Energy Model - End Of Life [C1-c4]
Electricity mix; AC; 120V; US / Electricity mix; AC; 220V; CN / Electricity mix; AC; 220V; CN
Height Nominal
96 mm
Certificate Agency
CE conforming to IEC 61010-1cULus conforming to UL 61010-1
Carbon Footprint (Kg Co2 Eq Total Life Cycle)
478.3
Package Weight(Lbs)
575.000 g
Warranty (In Months)
18
Air Pollution (M3) Manufacturing [A1-a3]
6654.3
Air Pollution (M3) Operational Energy Use [B6]
39393
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
6704
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
5718.8
Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
79.869
Hazardous Waste Disposed Of (Kg) Total Life Cycle
73.59
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
12.277
Non-hazardous Waste Disposed Of (Kg) Total Life Cycle
84.023
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
69.333
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
6959.8
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]
0.1243
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
7307
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
6221
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
16.238
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
5.6843
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
6954.1
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
0.1243
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
3.3145
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
343.92
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
330.99
Water Pollution (M3) Manufacturing [A1-a3]
7163.9
Water Pollution (M3) Installation [A5]
1.4419
Water Pollution (M3) End Of Life [C1-c4]
12.742
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationResidential, Commercial, Industrial
Device Applicationgateway, WAGES metering, power monitoring, multi-tariff
Ethernet ServiceSNTP client, SNMP-Traps
Measurement Accuracyapparent power +/- 0.5 %frequency +/- 0.05 %active energy +/- 0.2 %reactive energy +/- 1 %, active power +/- 0.2 %voltage +/- 0.1 %power factor +/- 0.005current +/- 0.15 %, reactive power +/- 1 %
Metering Typemeasured neutral current, calculated ground current
Number Of Poles+ N, 3P, 1P + N
Web Servicesalarm notification by e-mail, web server, diagnostic via predefined web pages, real time viewing of data
Ride-through Time35 ms 120 V AC typical129 ms 230 V AC typical, 50 ms 125 V DC typical
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.30827
Carbon Footprint Of The Manufacturing Phase [A1 To A3]80 kg CO2 eq., 79.869
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, PLSED310197EN_Web, PLSED310198EN_Web
Local Publishable Date2025-06-18
Stocking FlagN
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityYes
Manufacturing Carbon Footprint79.869
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1909005
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1938
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NamePM5580
Display Typemonochrome graphic LCD
Frequency Measurement Range45-65 Hz
Measurement Current50-10000 mA
Mounting Modeflush-mounted
Power Quality Analysisup to the 63rd harmonic
Product NamePowerLogic PM5000
RangePowerLogic
Sampling Rate128 samples/cycle
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: SEPM, Bangalore-India.
Energy Model - Use [B6]Electricity mix; AC; 120V; US / Electricity mix; AC; 220V; CN / Electricity mix; AC; 220V; CN
Recyclability Potential In %11
Width Nominal96 mm
[Us] Rated Supply Voltage24 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Total Life Cycle46056
Air Pollution (M3) Distribution [A4]2.7662
Air Pollution (M3) End Of Life [C1-c4]5.4933
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]983.48
Global Warming (Kg.Equivalent.Co2) Total Life Cycle478.3
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]398.04
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]60.507
Net Use Of Fresh Water (M3) Total Life Cycle1.4827
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]14.681
Radioactive Waste Disposed Of (Kg) Total Life Cycle0.0101
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]1068
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]5890
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]1084.2
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle347.23
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]330.99
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]5.6843
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1062.3
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]5890
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3.3145
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]12.924
Water Pollution (M3) Total Life Cycle26942
Water Pollution (M3) Distribution [A4]10.694
Water Pollution (M3) Operational Energy Use [B6]19754
Customs Code9028300000

Environment Attributes Main

Ambient Air Temperature For Storage
-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level
0 %
Carbon Footprint
478.3
Circularity Profile
ENVEOLI1909005
Eu Rohs Directive
Compliant By Exemption
Operating Altitude
<= 9842.52 ft (3000 m)<= 9842.52 ft (3000 m)
Packaging Without Single Use Plastic
No
Relative Humidity
5-95 % 50-50 °C non-condensing
Pep Verification Date
2020-01-01
Type Of Verification For The Pep
Independent external review
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1909005EN
Ip Degree Of ProtectionIP54 display: conforming to IEC 60529IP30 rear: conforming to IEC 60529
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1909005EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Product Or Component Type
power meter

ETIM

ETIM 8
EC002301
ETIM 9EC002301

Output Attributes

Number Of Outputs
2 digital

Input Attributes

Analogue Input Type
voltage (impedance 5 MOhm)current (impedance <= 0.3 mOhm)
Number Of Inputs4 digital
