Square D METSEEM480516 EM4800 multi-circuit energy meter - 24 x 5 A inputs, 120 V - 60 Hz
- MPN: METSEEM480516
- PPN: SCH-METSEEM480516
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

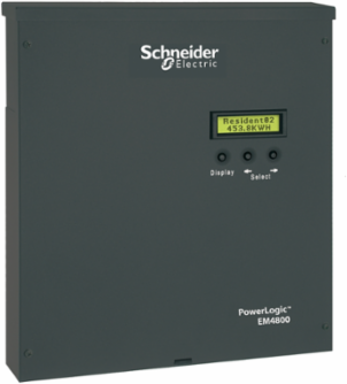

This multi-circuit power meter is part of the PowerLogic EM4800 Series. This compact multi-circuit energy meter enables reliable metering of individual tenants with a low installation cost-per-point. It combine revenue-accurate electricity sub-metering with advanced communications technology. It is ideal for multi-tenant or departmental metering applications within office, condominiums, malls and other multi-user environments. This version monitor up to 24 tenants with a single device, combined with 5 amps split or solid core current transformers. Designed for 120 volts networks, working at 60 Hz. Measurement accuracy is plus or minus 0.5 %, compliant with ANSI C12.1 and C12.20 Class 0.5 ; IEC 62053-22 Class 0.5S. The printed board is installed in a Type 1 black enclosure, with an integrated backlit LCD display, 2 lines, on the door. Mechanical dimensions are 335 mm in width, 440 mm in height and 55 mm in depth ; for 5.4 kg.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Canada, Mexico, United States
Depth5.5 cm
Communications & Management Attributes
- Communication Of Data
- apparent energy, positive reactive energy, voltage, negative active energy, positive active energy, negative reactive energy
- Communication Port Support
- RJ45 ETHERNETRJ11 modemSUB-D 9 RS232
Communication Port ProtocolBACnet IP, FTP, HTTP, Modbus TCP/IP, SNTP
Important Information Attributes
- Energy Management
- billing analysis, sub billing and cost allocation
- Type Of Measurement
- current per phase, rms, voltage per phase, rms, negative reactive energy, apparent energy, pulse count, positive active energy, positive reactive energy, negative active energy
- Local Publishable Date
- 2026-03-10
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Rohs Eur In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Compatibility Code
- EM4800
- Device Short Name
- EM4800
- Energy Efficiency Optimized
- False
- Measurement Voltage
- 80-480 V480-999000 V with external VT
- Mounting Mode
- wall mount
- Power Monitoring
- basic instrumentation
- Product Name
- PowerLogic EM4800
- Range
- PowerLogic
- Returnability
- Yes
- Sustainable Packaging
- No
- Height Nominal
- 44 cm
- Certificate Agency
- UL
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Market Segmentbuildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: panelboardbuildings small building cost management: billing: panelboard, buildings medium building cost management: billing: panelboard, buildings large building cost management: billing: panelboard, buildings multi-site cost management: billing: panelboard, buildings small building cost management: cost allocation: panelboard
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionDPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI111006EN
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Device Applicationsub billing
Display TypeBacklit LCD
Measurement Accuracy+/- 0.5 % of the measuring range+/- 0.5 % of the measuring range
Messages Display Capacity2 lines of 16 characters
Network Frequency60 Hz
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typemulti-circuit energy meter
Range Of ProductPowerLogic
Sampling Rate256 samples/cycle
Pep CodeENVPEP111007EN
Width Nominal33.5 cm
[Us] Rated Supply Voltage120 V AC 60 Hz
Package Weight(Lbs)1 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Operating Altitude
- <= 9842.52 ft (3000 m), <= 9842.52 ft (3000 m)
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI111006EN
- Eu Rohs Directive
- Will be compliant – Date to be confirmed
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP111007EN
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Ambient Air Temperature For Operation-40-70 °C-40-70 °C
Environmental DisclosureENVPEP111007EN
Packaging Made With Recycled CardboardNo
Relative Humidity90-90 % 40-40 °C
General Attributes
- Product Or Component Type
- multi-circuit energy meter
Range Of ProductPowerLogic
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 0
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Type
- split core CT 5 A12 x single phasesplit core CT 5 A8 x three phase, solid core CT 5 A24 x single polesolid core CT 5 A12 x single phasesolid core CT 5 A8 x three phase, split core CT 5 A24 x single pole
Number Of Inputs2 pulse
