Weidmuller 2534160000 ENERGY ANALYSER 750-24

  • MPN: 2534160000
  • PPN: WDM-2534160000
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

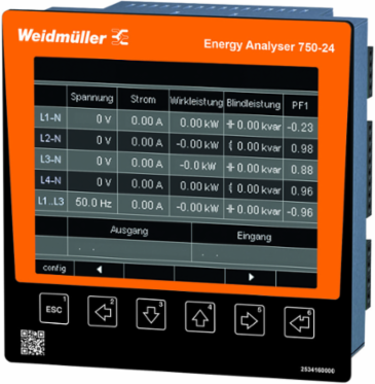

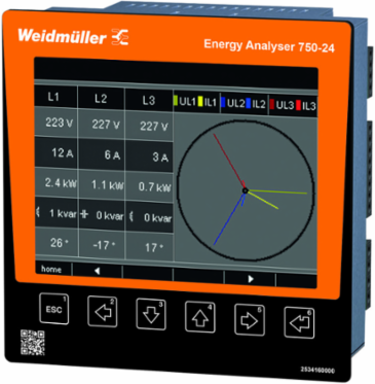

ENERGY ANALYSER 750-24

Documentation & Downloads

Specifications

Approvals

ApprovalsCULUS
UL File Number SearchE469563
ROHSConform

Communication

InterfaceRS485: 9.6 – 921.6 kbps, Profibus DP, Ethernet, Web server/e-mail
ProtocolModbus RTU, Modbus-Gateway, Modbus TCP/IP, Modbus RTU over Ethernet, SNMP, Profibus DP V0, BACnet (optional)

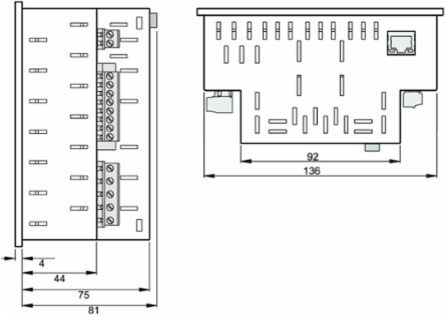

Dimensions And Weights

Width144 mm
Height144 mm
Depth81 mm
Net weight1,080 g
Width (inches)5.669 inch
Height (inches)5.669 inch
Depth (inches)3.189 inch

Measurement Data Recording

Memory; minimum and maximum valuesYes
Number of memory values10,000 k
Min. memory recording interval1 s
Integrated logicYes
Memory size256 MB
Update interval register200 ms
SoftwareecoExplorer go®

Voltage Quality Measurement

Harmonics, per order / voltage1.-63.
Distortion factor THD-U in %Yes
UnbalancedYes
Current flicker intensityYes
Brief interruptionsYes
Harmonics, per order / current1.-63.
Distortion factor THD-I in %Yes
Positive, negative and zero systemYes
Short/long time flickerYes
Sequence-of-events recorder functionYes

Measuring Current Input

Current-measuring channels4 + 2
Harmonics, per order / current1.-63.
Rated current1 / 5 A
Distortion factor THD-I in %Yes
Measuring accuracy for current0.1 %
Residual current measuringYes

Inputs/Outputs

Number of digital inputs2
Number of pulse outputs2
Number of digital outputs2
Temperature inputYes

Classifications

ETIM 6.0EC002301
eClass 9.027-14-23-30
eClass 10.027-14-23-30
ETIM 7.0EC002301
eClass 9.127-21-03-01
UNSPSC39-12-15-35

Measuring Voltage Input

Distortion factor THD-U in %Yes
Harmonics, per order / voltage1.-63.
Measurement range, voltage L-N, AC347 V
Quadrants4
Four-wire systemYes
Measurement range, voltage L-L, AC600 V
Measuring accuracy for voltage0.1 %
Three-wire systemYes

Technical Data

StandardsDIN EN 61000-4-2, DIN EN 61000-4-3, DIN EN 61000-4-4, DIN EN 61000-4-5, DIN EN 61000-4-6, DIN EN 61000-4-8, DIN EN 61238-1, EN 61000-4-11, EN 55011, IEC 61010-1, IEC 61010-2-030
Measurement range, voltage L-L, AC600 V
Voltage supply48…110 V AC, 24…150 V DC
Four-wire systemYes
Sampling frequency 50/60 Hz25.6 kHz
Effective value from the period (50/60 Hz)10 / 12
Residual current measuringYes
Measuring accuracy for current0.1 %
Operating-hours counterYes
Current-measuring channels4 + 2
Bimetal functionYes
Measurement range, voltage L-N, AC347 V
Surge voltage category600 V CAT III
Three-wire systemYes
Quadrants4
Continuous measurementsYes
Measurement result per second5
Measuring accuracy for voltage0.1 %
Measurement accuracy for active energy (kWh, …/5 A)Class 0.2S
Weekly time switchYes
ClockYes

Insulation Coordination

Surge voltage category600 V CAT III

Temperatures

Humidity at operating temperature5…95 % RH
Operating temperature, min.-10 °C
Storage temperature, min.-25 °C
Storage temperature-25 °C...70 °C
Operating temperature, max.55 °C
Storage temperature, max.70 °C
Operating temperature-10 °C...55 °C

Ratings Iecex/Atex/Cul

Certificate no. (cULus)E469563
ENERGY ANALYSER 750-24
ENERGY ANALYSER 750-24
ENERGY ANALYSER 750-24
