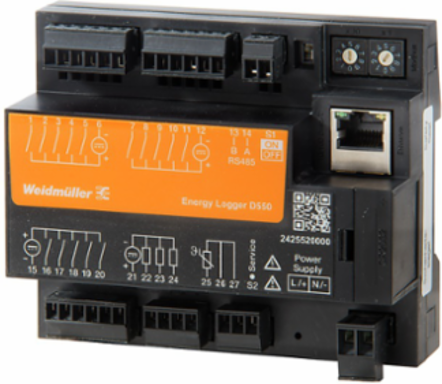

Weidmuller 2425520000 ENERGY LOGGER D550
- MPN: 2425520000
- PPN: WDM-2425520000
CAD
$2204.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ENERGY LOGGER D550
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CULUS
- UL File Number Search
- E469563
ROHSConform
Communication
- Interface
- RS485: 9,6 – 115,2 kbps, Ethernet
ProtocolModbus RTU, Modbus-Gateway, Modbus TCP/IP, Modbus RTU over Ethernet, SNMP

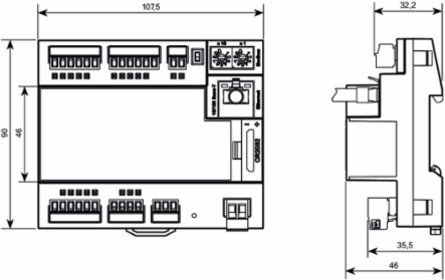

Dimensions And Weights
- Width
- 107.5 mm
- Height
- 90 mm
- Depth
- 46 mm
- Net weight
- 200 g
Width (inches)4.232 inch
Height (inches)3.543 inch
Depth (inches)1.811 inch
Measurement Data Recording
- Memory; minimum and maximum values
- Yes
- Software
- ecoExplorer go®
Memory size32 MB
Inputs/Outputs
- Number of digital inputs
- 15
- Number of pulse outputs
- 3
Number of digital outputs3
Temperature inputYes
Classifications
- ETIM 6.0
- EC002301
- eClass 9.0
- 27-14-23-30
- eClass 10.0
- 27-14-23-30
ETIM 7.0EC002301
eClass 9.127-21-03-01
UNSPSC39-12-15-35
Technical Data
- Standards
- DIN EN 61326-1, DIN EN 61000-4-2, DIN EN 61000-4-3, DIN EN 61000-4-4, DIN EN 61000-4-5, DIN EN 61000-4-6, EN 61000-4-11, IEC 61010-1, IEC 61010-2-030, EN 55011
- Voltage supply
- 20 - 250 V AC, 20 - 300 V DC20 - 300 V DC
Surge voltage category300 V CAT III
Operating-hours counterYes
Insulation Coordination
- Surge voltage category
- 300 V CAT III
Temperatures
- Humidity at operating temperature
- 5…95 % RH
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...70 °C
Operating temperature, max.55 °C
Storage temperature, max.70 °C
Operating temperature-40 °C...55 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E469563
