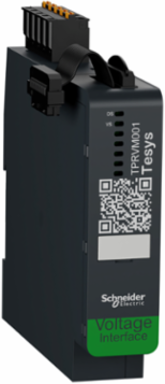

Schneider Electric TPRVM001 TeSys Island Voltage Interface Module 100-690V, IP20, 0.159kg

MPN: TPRVM001
PPN: SCH-TPRVM001
UNSPSC: 39121521

$257.46

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys island voltage interface module, 100-690V / 47-63Hz. Connected to a TPRBC bus coupler it measures the mains voltages powering the loads. It provides the voltage values for power and energy calculation, calculates the RMS values and phase sequence. Voltage measurement range 100-690 V +/- 5 %, phase frequency measurement range 47-63 Hz +/- 1 Hz in single phase or 3-phase systems. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Features

Monitoring of the mains voltage powering your loads
Reporting of the voltage to the bus coupler to enable power & energy monitoring
Manages motors and other electrical loads up to 65 A (AC-3) / 37 kW/40 hp
All adjustments and setting are digitized, no mechanical dials or dip switches
Embedded Cybersecurity (Achilles Level 2)

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Depth	114 mm

Weight	235 g

Complementary Attributes

Ue Rated Operational Voltage	690 V AC 47...63 Hz
Uimp Rated Impulse Withstand Voltage	6 kV IEC 61010-1

Ui Rated Insulation Voltage	690 V IEC 61010-1
Us Rated Supply Voltage	24 V DC supplied by the bus coupler

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electromagnetic Compatibility	electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3line voltage circuit: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, line voltage circuit: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
Local Signalling	1 LED (green/red) for DS (device status), 1 LED (green/red) for VS (voltage status)
Connections Terminals	measuring input removable spring terminal block 3 0.2-2.5 mm² 24 AWG...14 AWG)rigidmeasuring input removable spring terminal block 3 0.2-2.5 mm² 24 AWG...14 AWG)flexible without cable end, measuring input removable spring terminal block 3 0.25-2.5 mm² 22 AWG...14 AWG)flexible with cable end
Carbon Footprint Of The Distribution Phase A4	0.023544825178246537, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.1 kg CO2 eq., 0.08568826443275901
Carbon Footprint Of The Use Phase B2 B3 B4 B6	3 kg CO2 eq., 2.5615272429720317
Local Publishable Date	2026-06-27
Device Type	Relay, Control & Measurement - measuring, monitoring device
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1904009EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1911
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Current Consumption	2 mA
Energy Efficiency Optimized	False
Measurement Accuracy	voltage +/- 5 %,frequency +/- 1 Hz,
Overvoltage Category	III
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	voltage interface module
Range	TeSys
Shock Resistance	15 gn 11 ms) IEC 60068-2-27
Sustainable Packaging	No
Vibration Resistance	1.5 mm peak to peak 3-13 Hz) IEC 60068-2-61 gn 13-200 Hz) IEC 60068-2-6
Database Version	2024-01
Height Nominal	118 mm
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.TeSys island is designed to switch, protect, and manage motors and other electrical loads up to 80 (AC3) in an electrical control panel for 10 years.
Functional Unit Unit	unit
Recyclability Potential In %	49

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Function Of Module	monitoring of voltages in single phase systems L-N or L-L, monitoring of voltages in 3-phase systems without neutral N connection, calculation of RMS phase voltages, voltage phase sequence, fundamental frequency, identification of dip and swell events level and duration
Metering Type	phase voltage 100...690 Vphase frequency 47...63 Hz, phase sequence
Certificate Agency	UL, CSA, EAC (pending)
Carbon Footprint Of The End Of Life Phase C1 To C4	0.24233366685449925, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	3 kg CO2 eq., 3.2706039934821383
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	TPRVM
Fire Resistance	960 °C UL 94
Mounting Mode	horizontal and vertical 35 mm symmetrical rail)
Power Dissipation In W	0.5 W maximum
Product Name	TeSys island
Protective Treatment	TC
Returnability	Yes
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	6 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	25 mm
Customs Code	9030333800
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Pep End Of Validity Date Calculated	0012-03-19

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Halogene Performance	Halogen free plastic parts product
Mercury Free	Yes
Ambient Air Temperature For Operation	-10-60 °C-10-60 °C
Circularity Profile	ENVEOLI1904009EN
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	TPRBC bus coupler
Relative Humidity	5-95 %
Pep Verification Date	0007-03-19
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	6.183697992919674
Ambient Air Temperature For Storage	-25-70 °C-25-70 °C
Environmental Disclosure	ENVPEP1904009_V3-EN
Halogen Content Performance	Halogen free plastic parts product
Operating Altitude	0...6561.68 ft (0...2000 m) without derating
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1904009_V3-EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

General Attributes

Product Or Component Type	voltage interface module

ETIM

ETIM 8	EC001596
ETIM 10	EC001596

ETIM 9	EC001596

Overview Attributes

Device Presentation	monitoring of the mains voltage powering the island, reporting of the voltage to the bus coupler to enable power & energy monitoring
