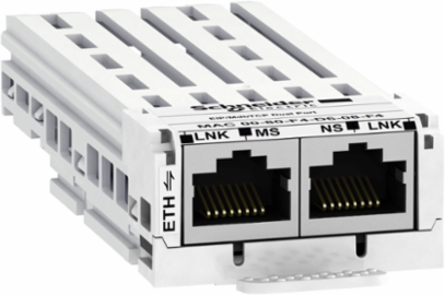

Schneider Electric VW3A3721 Communication Module Ethernet IP, Modbus TCP, 10/100 Mbps, Dual RJ45 Connectors
- MPN: VW3A3721
- PPN: SCH-VW3A3721
CAD
$747.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This EtherNet/IP, Modbus TCP, and MD-Link dual port module communication module is an option for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 20g.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Altivar
Product Or Component Typecommunication module
Complementary
- Communication Network Type
- IPv6 (internet protocol)
- Electrical Connection
- 2 connectors RJ45, Ethernet IP/Modbus TCP/MD-Link
- Net Weight
- 0.2 kg
- Communication Service
- SNMP agent Ethernet IP || Modbus TCP server Ethernet IP/Modbus TCP || Ethernet/IP adapter Ethernet IP || RSTP support Ethernet IP || FTP Ethernet IP || ODVA AC drive and CiA 402 profile Ethernet IP/Modbus TCP || auto-MDIX Ethernet IP/Modbus TCP || 32 parameters IN - 32 parameters OUT implicit messaging Ethernet IP/Modbus TCP || FDR Ethernet IP/Modbus TCP
- Time Synchronisation Protocol
- SNTP
- Web Services
- widgets (ID, control, data table, diagnostic, charts) || energy monitoring || customizable home page || save/restore drive configuration || Ethernet setting and diagnostic || pump function setting and monitoring || upgrade drive firmware || drive monitor || drive setting and diagnostic
- Transmission Rate
- 10/100 Mbps
Bus ProfileCIP AC Drive || CiA 402
Exchange Modehalf duplex and full duplex
Topologydaisy chain
Communication Port ProtocolMD-Link || EtherNet/IP || Modbus TCP
Display Type1 LED MS (Module Status) || 1 LED NS (Network Status) || 1 LED TX/RX (Transmit/Receive port 1) || 1 LED TX/RX (Transmit/Receive port 2)
Range CompatibilityAltivar Process ATV600 || Altivar Process Modular
Web Serverembedded HTTP server
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2010006EN
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Environment
- Product Certifications
- ODVA || Achilles level 2
