Schneider Electric ATV320U75M3C Variable Speed Drive 7.5kW 200-240V 3-Phase Compact
- MPN: ATV320U75M3C
- PPN: SCH-ATV320U75M3C
CAD
$1686.95
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

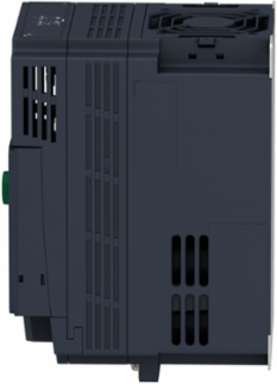

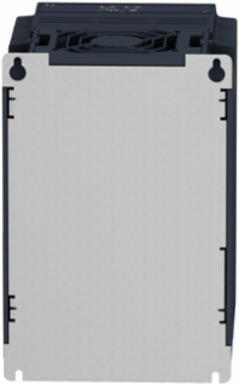

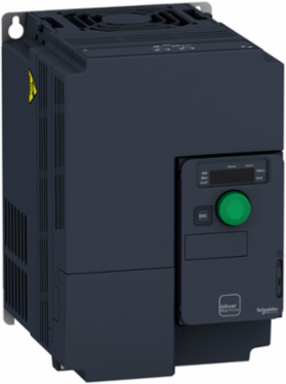

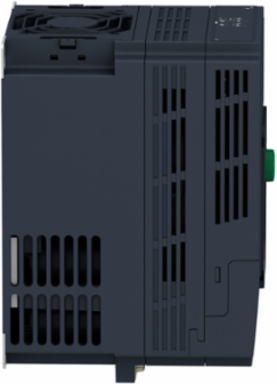

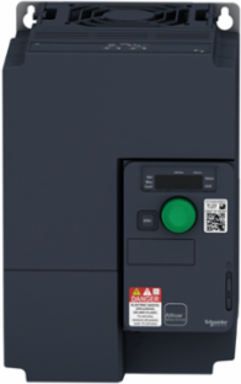

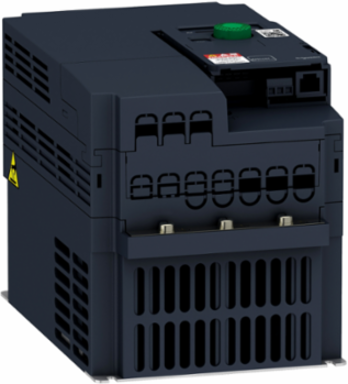

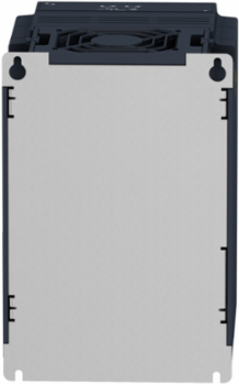

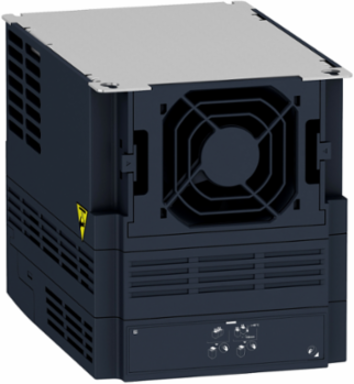

Variable Speed Drive 7.5kW 200-240V 3-Phase Compact
Features
- Engineered to deliver 7.5 kW (10 horsepower) of robust electrical output, this variable speed drive easily manages high-torque applications. It provides the smooth, consistent acceleration and deceleration curves required for demanding three-phase industrial machinery, optimizing motor performance while drastically reducing mechanical wear and tear on your drivetrain components.
- Operating on a flexible 3-phase input range from 200V to 240V AC (50/60 Hz), this Altivar Machine ATV320 drive easily integrates into existing industrial grids. This precise voltage matching eliminates the need for expensive step-up transformers, providing commercial facility managers and system integrators with a cost-effective, drop-in speed control solution.
- Featuring a space-saving "compact" form factor design, this unit maximizes panel density by minimizing the footprint needed inside your enclosure. The streamlined chassis profile allows panel builders to mount multiple drives side-by-side or alongside PLCs and contactors, substantially decreasing overall enclosure costs and footprint requirements.
- Equipped with integrated Modbus and CANopen protocols as standard, this drive connects effortlessly to your primary industrial network architectures. It allows maintenance teams and automation engineers to monitor real-time operating metrics, adjust parameters remotely, and perform rapid diagnostic troubleshooting from a centralized control room, boosting overall factory floor efficiency.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Latvia, Sweden, Singapore, United States, ZZ

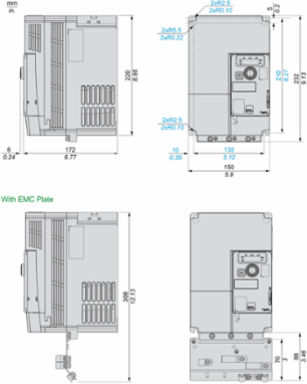

Depth178.0 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus serial, CANopen
Complementary Attributes
- Maximum Switching Current
- relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DCrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC, relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
- Maximum Associated Fuse Rating
- 80 A
- Maximum Input Current Per Phase
- 45.3 A
- Maximum Output Voltage
- 240 V
Brake Chopper Integratedtrue
Maximum Horse Power Rating10 hp
Maximum Output Frequency0.599 kHz
Minimum Switching Currentrelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Important Information Attributes
- Product Contributes To Saved And Avoided Emissions
- YES_SSI2, Yes
- Persona Type Names
- End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, voltage dips and interruptions immunity test conforming to IEC 61000-4-11
- Linearity Error
- AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input, AQ1 +/- 0.3 % analog output
- Motor Slip Compensation
- automatic whatever the load, adjustable 0...300 %, not available in voltage/frequency ratio (2 or 5 points)
- Protection Type
- input phase breaks drive, overcurrent between output phases and earth drive, overheating protection drive, short-circuit between motor phases drive, thermal protection drive
- Sampling Duration
- 2 ms AI1, AI2, AI3) - analog input, 2 ms AQ1) - analog output
- Switching Frequency
- 2...16 kHz adjustable, 4...16 kHz with derating factor
- [Us] Rated Supply Voltage
- 200...240 V, 200...240 V - 15...10 %
- Environmental Class (During Storage)
- class 1C3 according to EN 60721-3, class 1S2 according to EN 60721-3
- Carbon Footprint Of The Distribution Phase [A4]
- 0.8482160665577997, 0.8 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.8 kg CO2 eq., 0.804946726876585
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 5 852 kg CO2 eq., 5852.406642955434
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Variable speed drive - VSD Compacts
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1604022EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1714
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- 4 Quadrant Operation Possible
- true
- Application In Domestic And Commercial Area Permitted
- false
- Braking To Standstill
- by DC injection
- Computer Port
- true
- Emc Filter
- without EMC filter
- Format Of The Drive
- compact
- Maximum Associated Fuse Rating
- 80 A
- Method Of Access
- slave CANopen
- Mounting Mode
- wall mount
- Network Number Of Phases
- 3 phase
- Number Of Hw Interfaces Industrial Ethernet
- 0.0
- Number Of Hw Interfaces Parallel
- 0.0
- Number Of Hw Interfaces Serial Rs23
- 0.0
- Number Of Hw Interfaces Serial Rs485
- 1.0
- Number Of Hw Interfaces Usb
- 0.0
- Operating Element Present
- true
- Optical Interface Present
- false
- Phase
- 3 phase
- Power Loss Per Device Current Dependent
- 293.0 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- complex machines
- Range Of Product
- Altivar Machine ATV320
- Relative Symmetric Mains Voltage Tolerance
- 10 %
- Returnability
- Yes
- Supporting Protocol For Asi
- false
- Supporting Protocol For Can
- true
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- true
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 5 920 kg CO2 eq.
- Updatability
- Upgradeable through digital modules
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Application In Industrial Area Permitted
- true
- Pep Code
- ENVPEP1604022EN
- Pep Verification Date
- 2024-07-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 232.0 mm
- Emc Limit Value (Complied)
- false
- Maximum Acceleration Under Shock Load (During Storage)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibrational Stress (During Operation)
- 10 m/s² at 13...200 Hz
- Maximum Acceleration Under Vibratory Load (During Transport)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Storage)
- 3.5 mm at 2...13 Hz
- Permitted Relative Humidity (During Operation)
- class 3K5 according to EN 60721-3
- Permitted Relative Humidity (During Transport)
- class 2K5 according to EN 60721-3
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Interbus-safety
- false
- With Safety Function Safe Brake Management (Sbc/Sbt)
- false
- With Safety Function Safe Operating Stop (Sos)
- false
- With Safety Function Safe Speed Monitor (Ssm)
- false
- With Safety Function Safe Torque Off (Sto)
- true
- With Safety Function Safely Limited Speed (Sls)
- true
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type IdsEU, OM, OM8
Asynchronous Motor Control Profilevoltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor - Energy Saving, voltage/frequency ratio, 2 points
Line Current45.3 A 200 V heavy duty), 38.2 A 240 V heavy duty)
MarkingCE, ATEX, UL, CSA, EAC, RCM
Option Cardcommunication module, CANopen, communication module, EtherCAT, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
Refresh Timelogic input DI1...DI4)8 ms, relay output R1A, R1B, R1C)2 ms, relay output R2A, R2C)2 ms
Speed Accuracy+/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
Certificate AgencyCE, ATEX, NOM, GOST, EAC, RCM, KC
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
Environmental Class (During Transport)class 2C3 according to EN 60721-3, class 2S1 according to EN 60721-3
Carbon Footprint Of The End-of-life Phase [C1 To C4]7.717428264638048, 8 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]58 kg CO2 eq., 58.22923220421363
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier1
Function OptionStandard
Market SegmentationIndustrial
1 Phase Low Current Possiblefalse
Apparent Power15.9 kVA 240 V heavy duty)
Base Load Current At High Overload33.0 A
Capacity Of Dc Link4000 µF
Design Of Frequency ChangerU converter
Encoder ProtocolRS 422
Housing Materialplastic
Maximum Input Current Per Phase45.3 A
Motor Power Kw7.5 kW heavy duty
Network Frequency50-60 Hz
Nominal Switching Frequency4 kHz
Number Of Hw Interfaces Other1.0
Number Of Hw Interfaces Profinet0.0
Number Of Hw Interfaces Serial Rs420.0
Number Of Hw Interfaces Serial Tty0.0
Number Of Output Phases3
Operating Positionvertical +/- 10 degree
Overvoltage CategoryIII
Power Dissipation In Wfan 293.0 W 200 V 4 kHz
Power Loss Static Current Independent293.0 W
Product Or Component Typevariable speed drive
Prospective Line Isc22 kA
Regulation Loopadjustable PID regulator
Relative Symmetric Network Frequency Tolerance5 %
Software Versionv6.1
Supporting Protocol For Bacnetfalse
Supporting Protocol For Devicenettrue
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbustrue
Supporting Protocol For Profibustrue
Supporting Protocol For Profinet Iotrue
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Synchronous Motor Control Profilevector control without sensor
Transient Overtorque170-200 % of nominal motor torque
Volume Of Cooling Air60 m3/h
With Safety Function Safe Programmable Logicfalse
Motor Power Kw 10 N Motor Power Kw7.5 kW
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 7,5 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 200V to 240V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential, In %61
Width Nominal150 mm
Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
Maximum Acceleration Under Shock Load (During Transport)150 m/s² at 11 ms
Maximum Acceleration Under Vibratory Load (During Storage)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load (During Transport)3.5 mm at 2...13 Hz
Permitted Relative Humidity (During Storage)class 1K5 according to EN 60721-3
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Iptrue
Supporting Protocol For Tcp/Iptrue
With Safety Function Safe Direction (Sdi)false
With Safety Function Safe Position (Sp)false
With Safety Function Safe Stop 1 (Ss1)true
With Safety Function Safely Limited Position (Slp)false
With Sft Fct Safe Stop 2 (Ss2)false
Package Weight(Lbs)4.291 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C without derating, -10-50 °C without derating, -10-60 °C, -10-60 °C, -10-50 °C without derating, -10-50 °C without derating, 50-60 °C with derating factor
- Ambient Air Transport Temperature
- -25-70 °C, -25-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1604022EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 1
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1604022EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint5920.00646621772
Environmental DisclosureENVPEP1604022EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Machine ATV320
Product Or Component Typevariable speed drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Analogue Output Type
- software-configurable current AQ1 0...20 mA 800 Ohm 10 bits, software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
- Relay Output Type
- configurable relay logic R1A 1 NO 100000 cycles, configurable relay logic R1B 1 NC 100000 cycles, configurable relay logic R1C, configurable relay logic R2A 1 NO 100000 cycles, configurable relay logic R2C
- Discrete Output Number
- 3
- Maximum Output Voltage
- 240 V
- Nominal Output Power
- 7.5 kW
Discrete Output Typeopen collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA
Analogue Output Number1
Maximum Output Frequency0.599 kHz
Nominal Output Current33.0 A
Surge Protection And Filtering Attributes
- Emc Filter
- without EMC filter
Input Attributes
- Analogue Input Type
- AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits, AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
- Discrete Input Type
- STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- Discrete Input Number
- 7
Discrete Input Logicpositive logic (source), negative logic (sink)
Analogue Input Number3
Number Of Input Phases3
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$1686.95
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
CAD$1686.95/ EA
Loading add to cart quantity...
