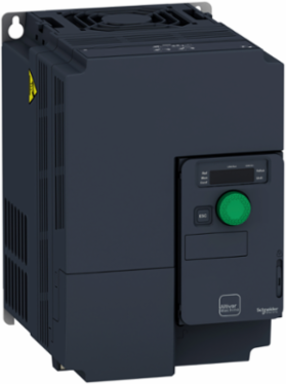

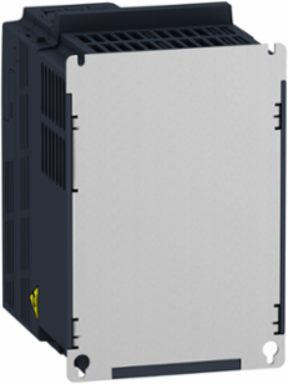

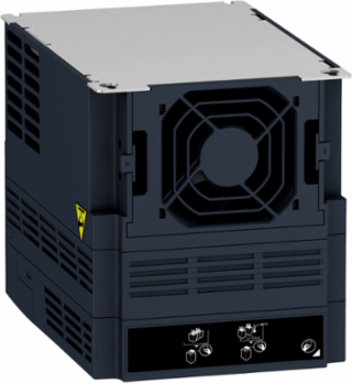

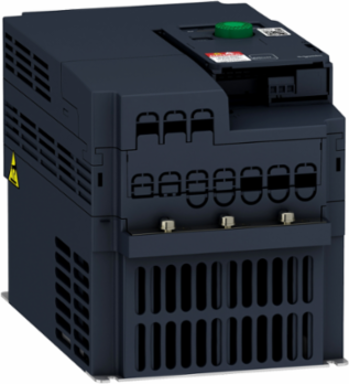

Schneider Electric ATV320U75S6C Variable Speed Drive, 7.5kW, 525-600V, Compact Design
- MPN: ATV320U75S6C
- PPN: SCH-ATV320U75S6C
CAD
$1884.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 7.5kW / 10hp and a rated voltage from 525V to 600V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 3.5kg and its dimensions are 150mm wide, 232mm high, 178mm deep. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in two packages. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Features
- Engineered for high-performance motor control, this Schneider Electric Variable Frequency Drive (VFD) supports a wide range of communication protocols, including Modbus RTU and CANopen as standard. This allows industrial engineers to easily synchronize the drive with PLCs and HMIs, providing superior machine flexibility and reducing the complexity of your factory automation architecture.
- Built to manage demanding 600V three-phase motor loads, this VFD is optimized for high-torque startups and variable speed control in heavy machinery like conveyors, mixers, and packaging lines. The robust power stage ensures consistent performance even under heavy loads, preventing motor burnout and extending the operational lifespan of your mechanical equipment.
- This drive comes factory-equipped with five safety functions, including Safe Torque Off (STO), which simplifies machine certification to SIL3/PLe standards. By integrating these safety features directly into the hardware, you eliminate the need for redundant external safety components, lowering overall system costs while ensuring maximum protection for operators and compliance with international safety regulations.
- The "Book" style mechanical design is specifically engineered for side-by-side mounting, significantly reducing the required footprint inside your control cabinet. This space-saving layout allows for more compact panel builds and improved airflow management, helping industrial panel shops lower material costs and prevent heat-related component failure in high-density environments.
Documentation & Downloads
Specifications
Additional
- Power
- 7.5 kW heavy duty
- Phase
- 3 phases
- Line Current
- 11.6 A (525 V heavy duty), 10.5 A (600 V heavy duty)
- Apparent Power
- 10.9 kVA (600 V heavy duty)
- Nominal Switching Frequency
- 4 kHz
- Transient Overtorque
- 170-200 % of nominal motor torque
- Speed Accuracy
- +/- 10 % of nominal slip 0.2 Tn to Tn
- Braking To Standstill
- by DC injection
- Minimum Switching Current
- 5 mA 24 V DC

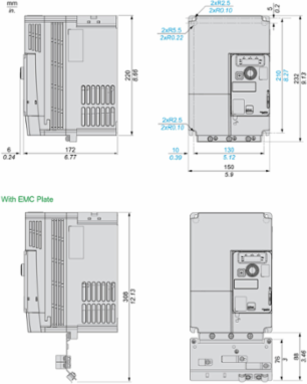

- Dimensions (W x H x D)
- 150 mm x 232 mm x 178 mm
- Height
- 232 mm
- Weight
- 3.5 kg
- Operating Position
- vertical +/- 10°
- Protection Type
- input phase breaks, overcurrent between output phases and earth, overheating, short-circuits, thermal protection
- With Safety Function Safe Torque Off (STO)
- true
- With Safety Function Safely Limited Speed (SLS)
- true
- Standards Compliance
- IEC 61800-5-1, CE, ATEX, UL, CSA, KC, EAC, RCM, NOM, GOST
- Pollution Degree
- 2
- Operating Ambient Temperature
- -10 to 50 °C without derating; up to 60 °C with derating
- Ambient Air Temperature For Operation
- -10 to 50 °C without derating; 50 to 60 °C with derating factor
- Ambient Air Transport Temperature
- -25 to 70 °C
- Option Cards
- CANopen, EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, DeviceNet
- Discrete Output Number
- 3
- Analogue Output Number
- 1
- Analogue Output Type
- software-configurable current 0-20 mA 800 Ohm 10 bits; software-configurable voltage 0-10 V DC 470 Ohm 10 bits
- Discrete Input Logic
- positive logic (source), negative logic (sink)
- Relay Output Type
- configurable relay logic R1A 1 NO, R1B 1 NC, R1C, R2A 1 NO, R2C - all 100000 cycles
- Mercury Free
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (out of EU RoHS legal scope)
- Sustainable Offer Status
- Green Premium product
- Prospective Line Isc
- 22 kA
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2-13 Hz
- Product Or Component Type
- variable speed drive
- Product Specific Application
- complex machines
- Variant
- standard version
Voltage525...600 V AC -15...10%
Nominal Output Current11.0 A
Maximum Input Current per Phase11.6 A
Switching Frequency2...16 kHz adjustable
Maximum Output Frequency0.599 kHz
Regulation Loopadjustable PID regulator
Acceleration And Deceleration Rampslinear, U, S, CUS, ramp switching, acceleration/deceleration ramp adaptation, acceleration/deceleration automatic stop with DC injection
Maximum Switching Currentrelay output R1A, R1B, R1C resistive 3 A 250 V AC; relay output R1A, R1B, R1C resistive 3 A 30 V DC; relay output R1A, R1B, R1C, R2A, R2C inductive 2 A 250 V AC; relay output R1A, R1B, R1C, R2A, R2C inductive 2 A 30 V DC; relay output R2A, R2C resistive 5 A 250 V AC; relay output R2A, R2C resistive 5 A 30 V DC
Motor Power Kw7.5 kW heavy duty
Width150 mm
Depth178 mm
Mounting Modewall mount vertical +/- 10°
Ip Degree Of ProtectionIP20
Safety FunctionsSafe Torque Off (STO), Safe Stop 1 (SS1), Safely Limited Speed (SLS)
With Safety Function Safe Stop 1 (SS1)true
Overvoltage CategoryIII
Product CertificationsCE, ATEX, NOM, GOST, EAC, RCM, KC, UL, CSA
Environmental ClassClass 3C3, Class 3S2 (IEC 60721-3-3)
Storage Temperature-25 to 70 °C
Ambient Air Temperature For Storage-25 to 70 °C
Communication ProtocolsModbus serial, CANopen
Discrete Input Number7
Analogue Input Number3
Analogue Input TypeAI1 voltage 0-10 V DC 30 kOhm 10 bits; AI2 bipolar differential voltage +/-10 V DC 30 kOhm 10 bits; AI3 current 0-20 mA (configurable patterns) 250 Ohm 10 bits
Discrete Input TypeSTO safe torque off, 24 V DC 1.5 kOhm; DI1-DI6 logic inputs 24 V DC; DI5 programmable pulse input 0-30 kHz 24 V DC
Discrete Output Typeopen collector 0-1 kHz 30 V DC 100 mA
UpgradeabilityUpgraded components available
Reach RegulationContains Substances of Very High Concern above threshold
Rohs Exemption InformationYes
WeeeMust be disposed according to EU waste directives
Base Load Current At High Overload4 A
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13-200 Hz
Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
Range Of ProductAltivar Machine ATV320
Format Of The Drivecompact
