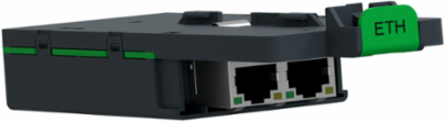

Schneider Electric REL51042 Ethernet RSTP Communication Module 2 RJ45 Ports, 176 mm Height
- MPN: REL51042
- PPN: SCH-REL51042
CAD
$260.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Plug & play communication module for Schneider Electric's Easergy P5 withdrawable protective relay. This 2nd Ethernet communication module offers RSTP redundancy to Easergy P5x30. It can be installed to Easergy P5x30 any time: during installation, commissioning or even during maintenance. This plug and play communication module offers 2 ports RJ45, 10/100 base TX, 10 or 100 Mbit per second. It ensures Rapid Spanning Tree Protocol (RSTP). The product dimensions are 176 mm in height (6.93 in) 53 mm in width (2.08 in) and 26 mm in depth (1.02 in) for a net weight of 73 g (0.161 lbs). Easergy P5 is compliant with EN 60255-26, EN 60255-27 standards and with UL Standard. It provides Marine certification. This product can be installed in slot L of the Easergy P5x30 protection relay.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Estonia, France, Sweden
Depth26 mm
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Field Service Division
- DPIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- PowerLogic P5
- Sustainable Packaging
- No
- Height Nominal
- 176 mm
- Accessory / Separate Part Category
- modules and interfaces
- Package Weight(Lbs)
- 116.0 g
- Warranty (In Months)
- 18
Local Publishable Date2025-12-05
Stocking FlagY
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2435
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Energy Efficiency OptimizedFalse
Product Or Component Typecommunication module
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal53 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8517620090
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- communication module
Range Of ProductPowerLogic P5
