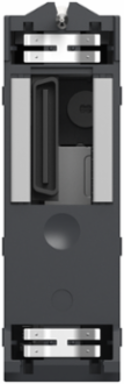

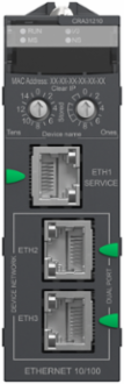

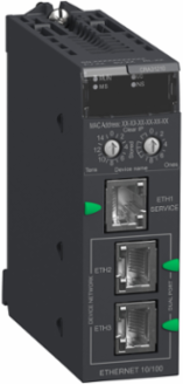

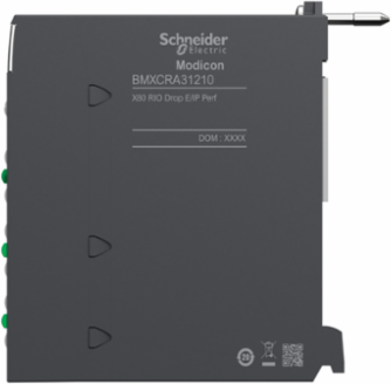

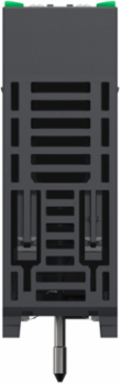

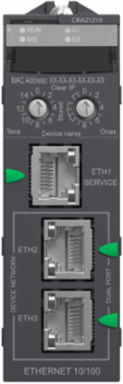

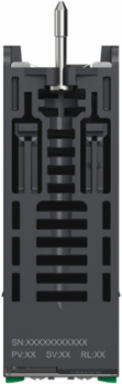

Schneider Electric BMXCRA31210 Modicon X80 Ethernet Remote I/O Drop Adaptor, 3 Ports, IP20 Rated
- MPN: BMXCRA31210
- PPN: SCH-BMXCRA31210
CAD
$4115.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet Remote Input Output (RIO) drop adaptor has 3 ports with service port advanced features. Integrated connections are EtherNet/IP for device network and EtherNet/IP for service port. This product is robust, high quality and based on the latest innovative technology. The input data are collected and published to the remote I/O head adaptor and output modules are updated with the data received from remote I/O head adaptor. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This adaptor is compatible with multifunction input module BMXERT, Ethernet module BMXNOM, counter module BMXEHC, 0 to 1024 discrete channels, 0 to 256 analogue channels and HART module BMEAH. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Modicon X80
- Product Specific Application
- for remote I/O modules
- Device Application
- X80 Ethernet RIO drop adaptor
Product Or Component TypeI/O expansion module
Range CompatibilityModicon M580 || Modicon Quantum
Complementary
- Product Compatibility
- 0-1024 discrete channel || 0-256 analog channel || counter module || time-stamping module || SSI encoder interface module || motion control module || frequency input module || AS-Interface module || serial link module || fiber converter modules
- Height
- 100 mm
- Communication Service
- Ethernet/IP adapter || RSTP (Ring topology support) || Ethernet RIO network || Quality of Service (QoS) || CIP Explicit messaging (server) || Modbus TCP server for module diagnostics || DHCP client || TFTP client || FTP client || FDR client || SNTP client || SNMP agent
- Net Weight
- 0.225 kg
- Topology
- ring
- Function Available
- CCOTF (configuration change on the fly) || input data is collected and published to the remote I/O head adaptor || output modules are updated with the data received from remote I/O head adaptor || diagnostics for remote I/O devices (Device DDT) || port mirroring || system time stamping || non-interfering type 1 || I/O extension rack
- Mounting Mode
- rack-mounted
- Integrated Connection Type
- 1 port service or distributed equipment || 2 port Ethernet RIO Network (RSTP)
- Input Voltage
- 3.3 V DC
- Local Signalling
- module active (RUN) 1 LED green) || module error (ERR) 1 LED red) || module status (Mod Status) 1 LED green/red) || network communication status (Net Status) 1 LED green/red) || Ethernet link diagnostics (STS) 1 LED green)
- Cybersecurity
- enable/disable communication ports || Syslog protocol support
- Port Ethernet
- 10/100BASE-TX
- Transmission Rate
- 10/100 Mbit/s
- Maximum Altitude Transport
- 3000 m
Communication Network TypeIPv4 (internet protocol)
Fixing Modeby screws
Exchange Modehalf duplex, full duplex, autonegotiation, auto MDIX
Current Consumption1200 mA
Connector Type3 RJ45
Communication Port ProtocolEtherNet/IP
Number Of Port3
Bus Typebus X across the remote backplane
Relative Humidity95-95 % without condensation
Data Recording10 ms time stamps
Module Formatstandard
Width32 mm
Depth87.5 mm
Environment
- Ambient Air Temperature For Operation
- -0-60 °C
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Operating Altitude
- <= 2000 m
StandardsEN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G
Environmental Characteristicstandard environment
Ambient Air Temperature For Storage-40-85 °C
Ip Degree Of ProtectionIP20
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
