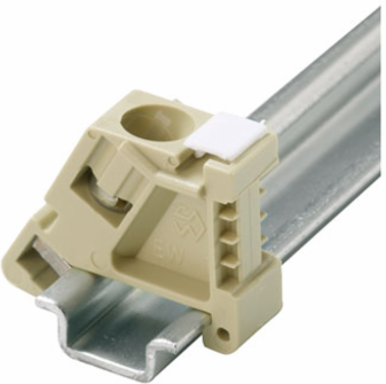

Weidmuller 0382860000 EW 15
- MPN: 0382860000
- PPN: WDM-0382860000
CAD
$0.78
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Accessories, End bracket
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 10 mm |
|---|---|
| Height | 26 mm |
| Depth | 21 mm |
| Net weight | 2.7 g |
| Width (inches) | 0.394 inch |
|---|---|
| Height (inches) | 1.024 inch |
| Depth (inches) | 0.827 inch |
Dimensions
| TS 15 offset | 13 mm |
|---|
| TS 35 offset | 32 mm |
|---|
Additional Technical Data
| Interlock | for screw fixing |
|---|
| Type of mounting | Direct mounting |
|---|
Material Data
| Material | Polyamide 66 |
|---|---|
| UL 94 flammability rating | V-2 |
| Colour | beige |
|---|
Classifications
| ETIM 6.0 | EC001041 |
|---|---|
| eClass 9.0 | 27-14-11-35 |
| eClass 10.0 | 27-14-11-35 |
| ETIM 7.0 | EC001041 |
|---|---|
| eClass 9.1 | 27-14-11-35 |
| UNSPSC | 30-21-18-01 |
System Specifications
| Version | For the terminals |
|---|
| Rail | TS 15 |
|---|
Temperatures
| Continuous operating temp., min. | -50 °C |
|---|
| Continuous operating temp., max. | 100 °C |
|---|
