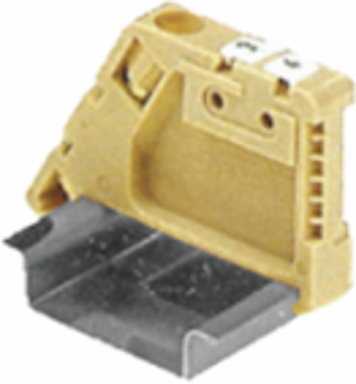

Weidmuller 0383560000 EW 35
Weidmuller 0383560000 EW 35
- MPN: 0383560000
- PPN: WDM-0383560000
Spec sheet
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$1.24/ EA
Description
Accessories, End bracket
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 8.5 mm
- Height
- 46 mm
- Depth
- 27 mm
- Net weight
- 5.32 g
Width (inches)0.335 inch
Height (inches)1.811 inch
Depth (inches)1.063 inch
Dimensions
- TS 35 offset
- 22.5 mm
Additional Technical Data
- Installation advice
- Direct mounting
- Type of mounting
- when screwed in
Interlockfor screw fixing
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-2
Colourbeige
Classifications
- ETIM 6.0
- EC001041
- eClass 9.0
- 27-14-11-35
- eClass 10.0
- 27-14-11-35
ETIM 7.0EC001041
eClass 9.127-14-11-35
UNSPSC30-21-18-01
System Specifications
- Version
- For the terminals
RailTS 35
Temperatures
- Continuous operating temp., min.
- -50 °C
Continuous operating temp., max.100 °C
Conductors For Clamping (Rated Connection)
- Tightening torque, max.
- 0.6 Nm
Tightening torque, min.0.5 Nm
