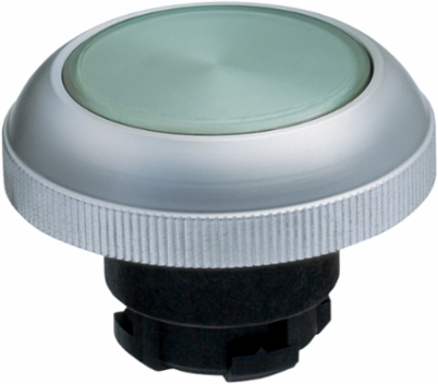

Schmersal 101197345 EX-RDMGN Push Button Green Round Switch, Stainless Steel, 4 mm Actuating Stroke, Ex-Zone 1 and 21

EX-RDMGN Push Button Green Round Switch, Stainless Steel, 4 mm Actuating Stroke, Ex-Zone 1 and 21
EX-RDMGN Push Button Green Round Switch, Stainless Steel, 4 mm Actuating Stroke, Ex-Zone 1 and 21
  • MPN: 101197345
  • PPN: SCM-101197345

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$167.68/ EA

Features

  • Ex-Zone 1 and 21
  • Push button

Specifications

Explosion protection

Explosion protection: regulations
EN IEC 60079-0 | EN IEC 60079-11 | EN IEC 60079-31 | EN IEC 60079-14
Explosion protection category
2D | 2G
Explosion protection zones22 | 2 | 1 | 21
Explosion protection designationII 2G Ex ib IIC Gb | II 2D Ex ib IIIC Db

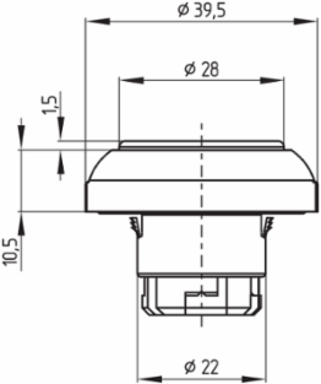

Mechanical data - Dimensions

Mounting diameter
22.3 mm
Thickness of the front panel, maximum6 mm

Safety classification - Safety outputs

B
100,000 Operations

General data

Standards
EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-5
Material of the identification label
Stainless steel (V4A)
Colour of the operating element
Green
DesignRound
Material of the front ringAluminium
Gross weight60 g

Safety classification

Mission time
20 Year(s)

Mechanical data

Actuating stroke
4 mm

Approvals - Standards

Certificates
TÜV | IEC Ex
