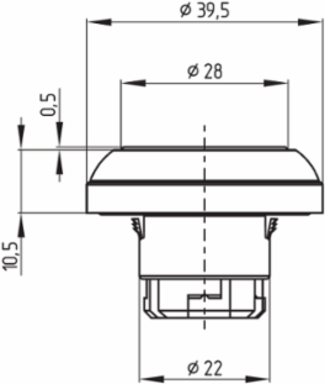

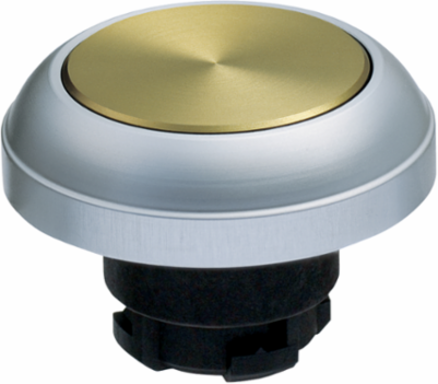

Schmersal 101197337 EX-RD Push Button Device for Ex Zones 1 & 21, 67 g, Aluminium, 20 Year Mission Time
- MPN: 101197337
- PPN: SCM-101197337
CAD
$151.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
EX-RD Push Button Device for Ex Zones 1 & 21, 67 g, Aluminium, 20 Year Mission Time
Features
- Ex-Zone 1 and 21
- Push button
Documentation & Downloads
Specifications
Explosion protection
- Explosion protection: regulations
- EN IEC 60079-0 | EN IEC 60079-11 | EN IEC 60079-31 | EN IEC 60079-14
- Explosion protection category
- 2D | 2G
Explosion protection zones22 | 2 | 1 | 21
Explosion protection designationII 2G Ex ib IIC Gb | II 2D Ex ib IIIC Db
Mechanical data - Dimensions
- Mounting diameter
- 22.3 mm
Thickness of the front panel, maximum6 mm
Safety classification - Safety outputs
- B
- 100,000 Operations
General data
- Standards
- EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-5
- Material of the identification label
- Stainless steel (V4A)
- Colour of the operating element
- Yellow
DesignRound
Material of the front ringAluminium
Gross weight67 g
Safety classification
- Mission time
- 20 Year(s)
Mechanical data
- Actuating stroke
- 4 mm
Approvals - Standards
- Certificates
- TÜV | IEC Ex
